SD-210-T

W × H0.580 × 0.700 in MaterialRubber

Tape Seals Bulb Seals

Request a quote for SD-210-T → Spec sheet (PDF) Print spec sheet

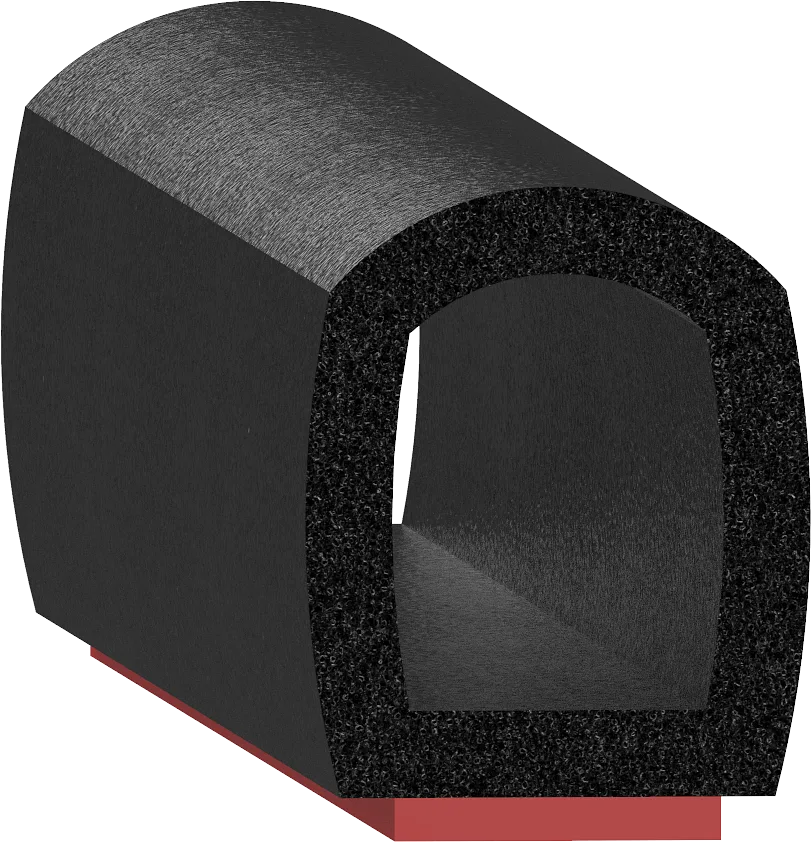

Cross-section drawing of SD-210-T — Cross-section — SD-210-TNot to scale

Specification

As drawn.

Specification for SD-210-T
Width	0.580" 14.7 mm
Height	0.700" 17.8 mm
Material	Rubber
Type	Sponge
Durometer	2A2 (sponge grade)
Colour	Black
Mount	Tape
Bulb position	Top
Tape	3M Heat-Activated Tape
Industries	Metal and Fiberglass Fabrication
Shape	Bulb Seal and D-Seal

Coil lengths: 100 ft · 250 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-212-T 0.700 × 0.600 in · Rubber SD-213-T 0.900 × 1.000 in · Rubber TS-066 1.000 × 1.000 in · Rubber
