Seal catalogue · Bulb Seals · Part

DU-085 copy

DU-085

W × H0.950 × 0.680 in MaterialRubber

Bulb Seals

Request a quote for DU-085 → Spec sheet (PDF) Print spec sheet

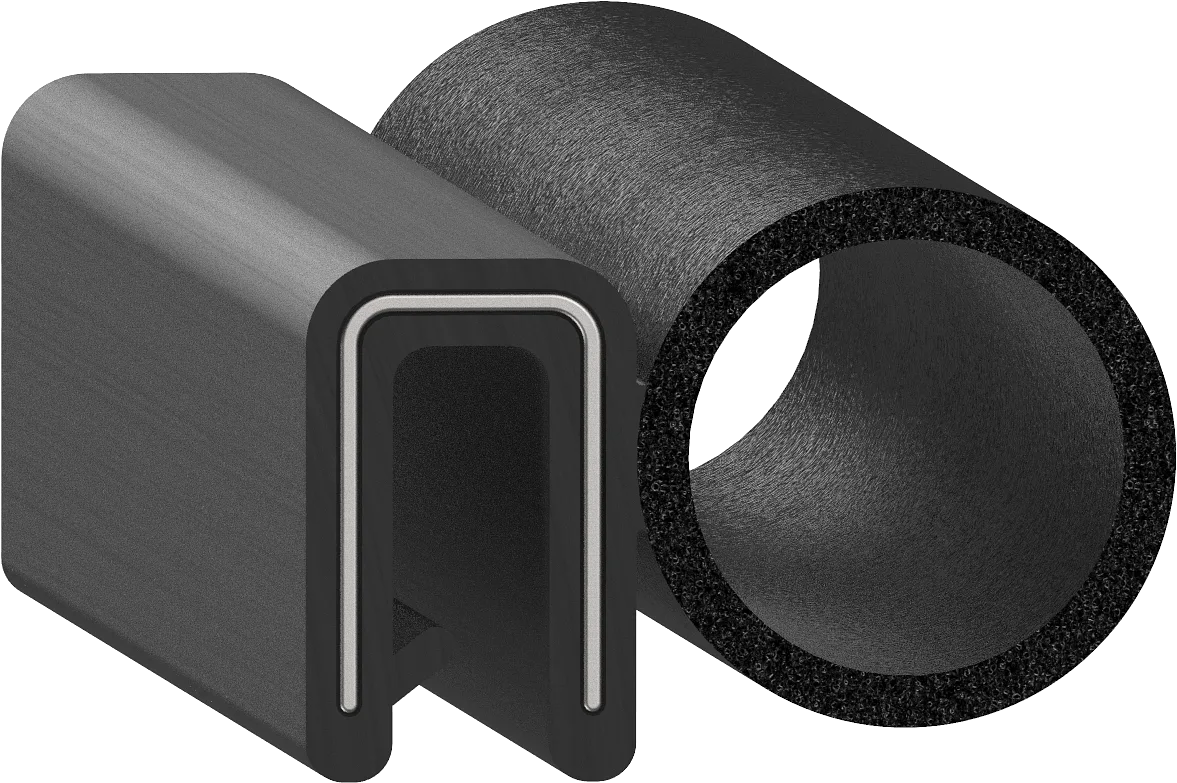

Cross-section drawing of DU-085 — Cross-section — DU-085Not to scale

Specification

As drawn.

Specification for DU-085
Width	0.950" 24.1 mm
Height	0.680" 17.3 mm
Flange	0.180" 4.6 mm
Material	Rubber
Type	Dense
Durometer	70 Shore A
Colour	Black
Mount	Push On
Bulb position	Side
Core	1.120in Wire
Second durometer	40 Durometer
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

9 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DU-011 1.350 × 0.880 in · Rubber DU-068 1.070 × 0.790 in · Rubber DU-085-125-Opening 0.950 × 0.680 in · Rubber SD-12109-OS 1.300 × 1.000 in · Rubber SD-12110 1.196 × 0.736 in · Rubber SD-12114 1.185 × 0.575 in · Rubber SD-12116 1.230 × 0.984 in · Rubber SD-12124 1.090 × 0.700 in · Rubber SD-12124-Crimped 1.075 × 0.700 in · Rubber

Need it in volume, or to a change?

Tell an engineer the application.

Request a quote →
