Seal catalogue · Bulb Seals · Part

SD-12114 copy

SD-12114

W × H1.185 × 0.575 in MaterialRubber

Bulb Seals

Request a quote for SD-12114 → Spec sheet (PDF) Print spec sheet

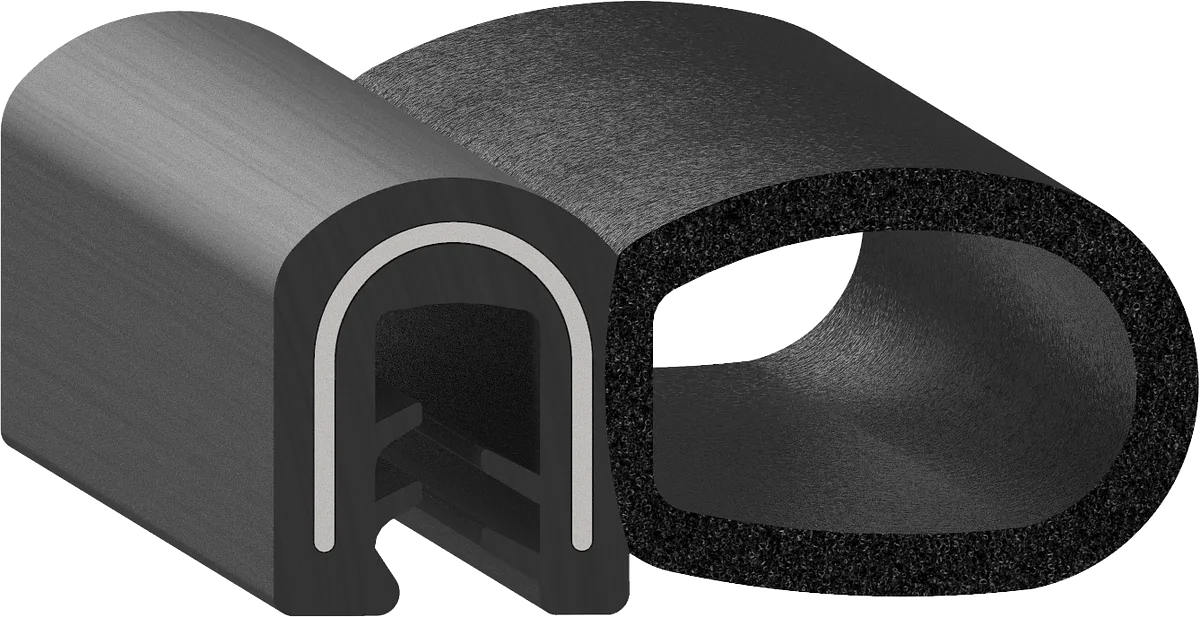

Cross-section drawing of SD-12114 — Cross-section — SD-12114Not to scale

Specification

As drawn.

Specification for SD-12114
Width	1.185" 30.1 mm
Height	0.575" 14.6 mm
Flange	0.180" 4.6 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Side
Core	1.120in Wire
Second durometer	70 Durometer
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

8 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DU-068 1.070 × 0.790 in · Rubber DU-079 1.300 × 0.680 in · Rubber DU-085 0.950 × 0.680 in · Rubber SD-12109-OS-NC 1.300 × 1.015 in · Rubber SD-12110 1.196 × 0.736 in · Rubber SD-12116 1.230 × 0.984 in · Rubber SD-12124 1.090 × 0.700 in · Rubber SD-12124-Crimped 1.075 × 0.700 in · Rubber
