Seal catalogue · Bulb Seals · Part

DU-085-125-Opening copy

DU-085-W .125 Opening

W × H0.950 × 0.680 in MaterialRubber

Bulb Seals

Request a quote for DU-085-125-Opening → Spec sheet (PDF) Print spec sheet

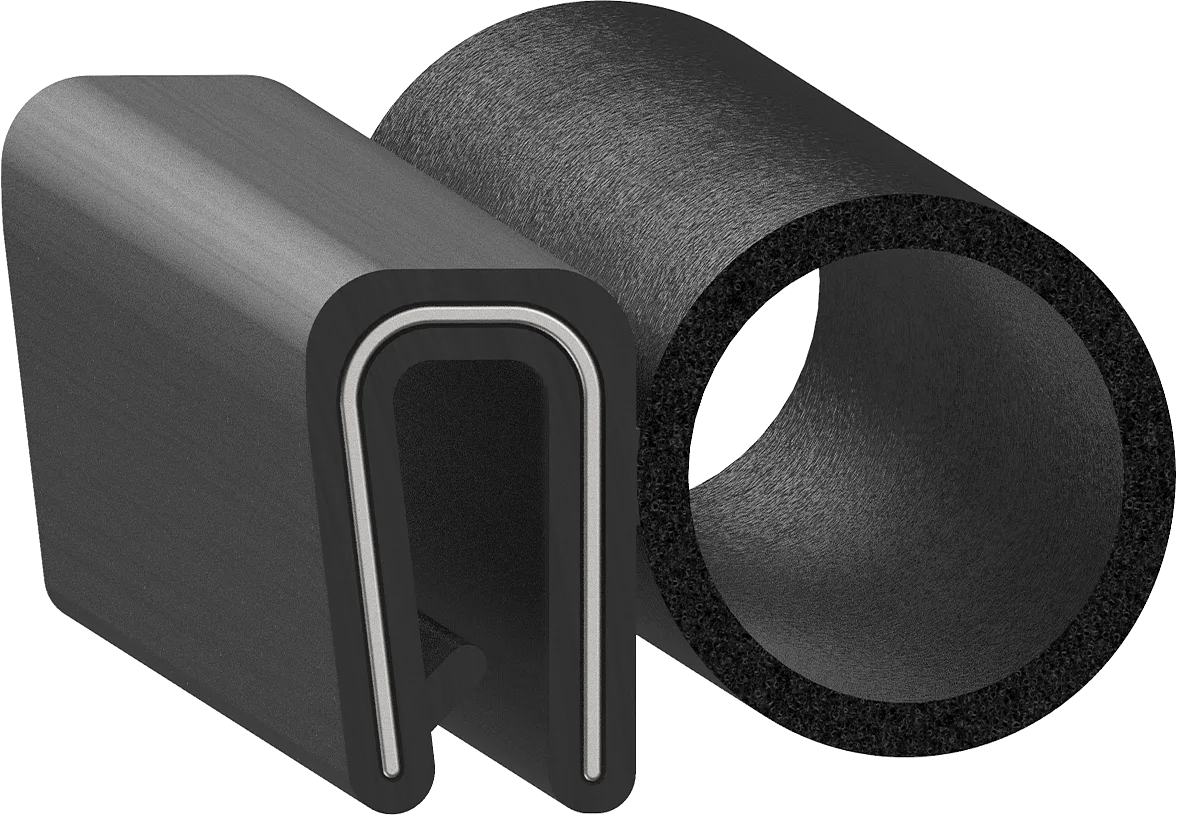

Cross-section drawing of DU-085-125-Opening — Cross-section — DU-085-125-OpeningNot to scale

Specification

As drawn.

Specification for DU-085-125-Opening
Width	0.950" 24.1 mm
Height	0.680" 17.3 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Dense
Durometer	70 Shore A
Colour	Black
Mount	Push On
Bulb position	Side
Core	1.120in Wire
Second durometer	40 Durometer
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DU-068 1.070 × 0.790 in · Rubber DU-085 0.950 × 0.680 in · Rubber SD-12109-OS-NC 1.300 × 1.015 in · Rubber
