SD-750

W × H1.256 × 1.340 in MaterialRubber

Bulb Seals

Request a quote for SD-750 → Spec sheet (PDF) Print spec sheet

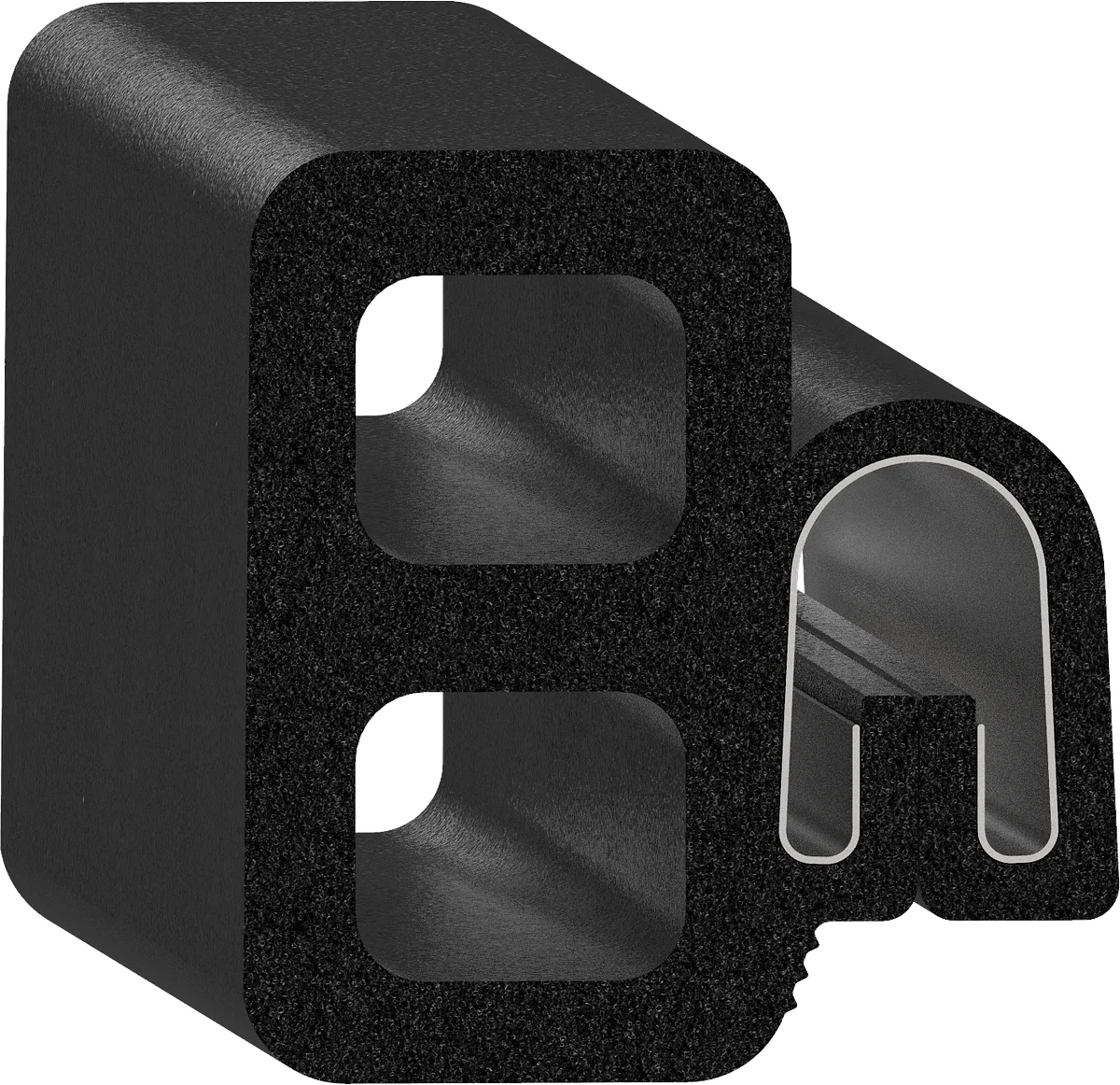

Cross-section drawing of SD-750 — Cross-section — SD-750Not to scale

Specification

As drawn.

Specification for SD-750
Width	1.256" 31.9 mm
Height	1.340" 34.0 mm
Flange	0.250" 6.4 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Side
Core	SD-500L Spring Steel
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

4 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-5700 1.660 × 1.250 in · Rubber SD-725 1.400 × 1.350 in · Rubber SD-727 1.560 × 1.800 in · Rubber SD-750-W 1.256 × 1.340 in · Rubber
