Specification

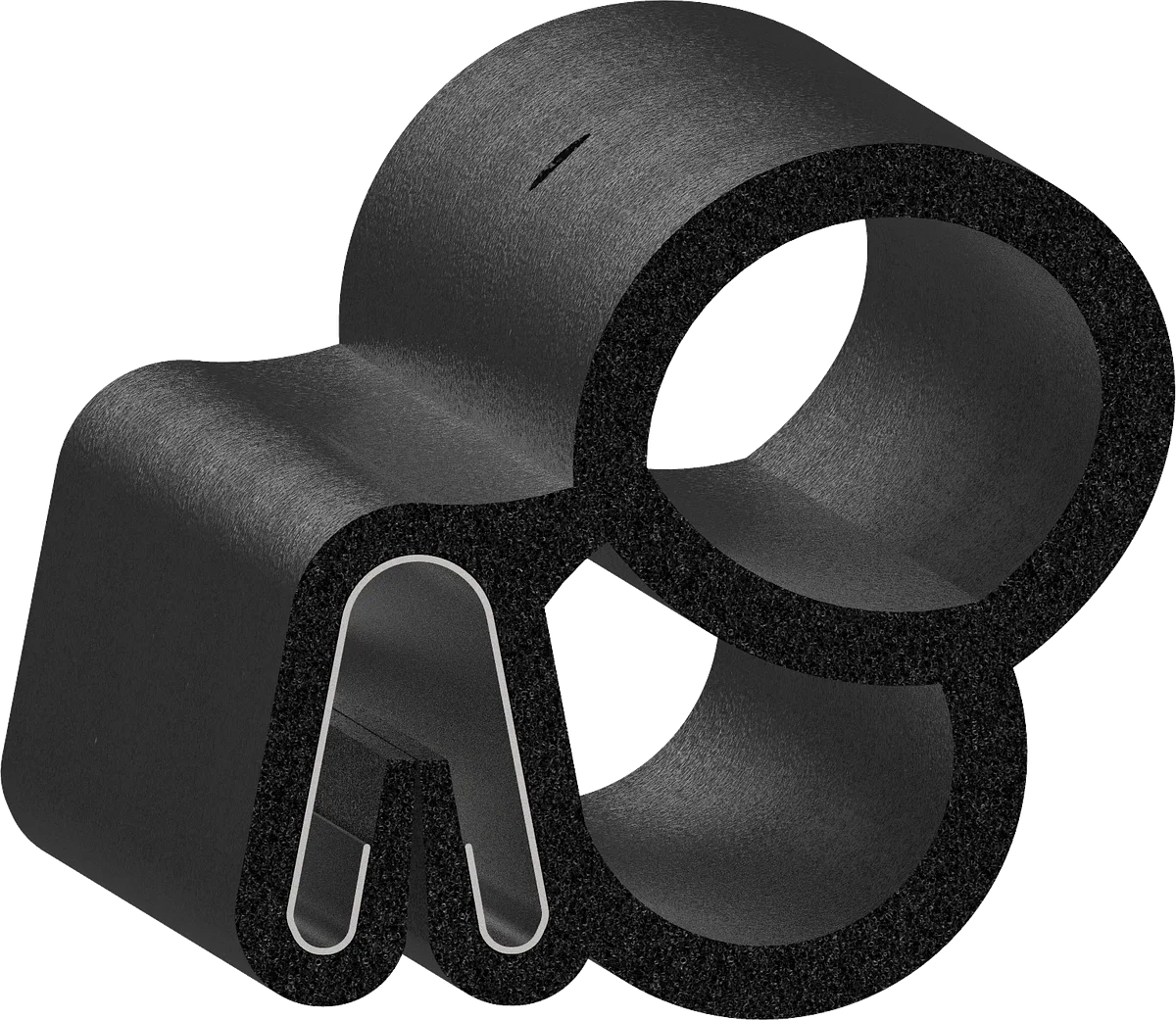

As drawn.
| Width | 1.400" 35.6 mm |
|---|---|
| Height | 1.350" 34.3 mm |
| Flange | 0.250" 6.4 mm |
| Material | Rubber |
| Type | Sponge |
| Durometer | 2A3 (sponge grade) |
| Colour | Black |
| Mount | Push On |
| Bulb position | Side |
| Core | SD-500L Spring Steel |
| Industries | Emergency Vehicles and Utility Vehicles |
| Shape | Bulb Seal |
Coil lengths: 50 ft · 250 ft
Dimensions in inches to three places, as on the drawing; millimetres computed.
3 interchangeable parts
Substitutes from the catalogue.
Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.
Need it in volume, or to a change?
