ED-5390

W × H2.750 × 0.750 in MaterialRubber

Request a quote for ED-5390 → Spec sheet (PDF) Print spec sheet

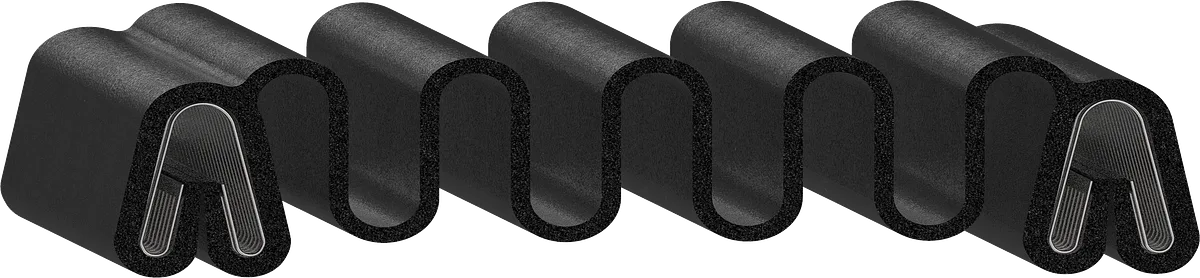

Cross-section drawing of ED-5390 — Cross-section — ED-5390Not to scale

Specification

As drawn.

Specification for ED-5390
Width	2.750" 69.9 mm
Height	0.750" 19.0 mm
Flange	0.250" 6.4 mm
Material	Rubber
Type	Sponge
Durometer	2A5 (sponge grade)
Colour	Black
Mount	Push On
Core	SD-500L Spring Steel
Industries	Emergency Vehicles

Dimensions in inches to three places, as on the drawing; millimetres computed.

5 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ED-5381 2.500 × 0.650 in · Rubber ED-5382 2.000 × 0.650 in · Rubber ED-5386 3.250 × 0.650 in · Rubber ED-5388 4.000 × 0.650 in · Rubber ED-5389 4.900 × 0.650 in · Rubber
