ED-5386

W × H3.250 × 0.650 in MaterialRubber

Request a quote for ED-5386 → Spec sheet (PDF) Print spec sheet

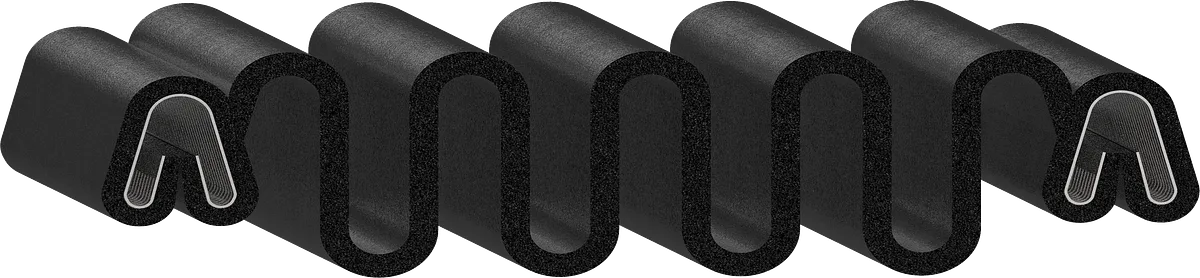

Cross-section drawing of ED-5386 — Cross-section — ED-5386Not to scale

Specification

As drawn.

Specification for ED-5386
Width	3.250" 82.6 mm
Height	0.650" 16.5 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Push On
Core	SD-487 Spring Steel
Industries	Emergency Vehicles

Coil lengths: 50 ft · 150 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

4 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ED-5381 2.500 × 0.650 in · Rubber ED-5382 2.000 × 0.650 in · Rubber ED-5388 4.000 × 0.650 in · Rubber ED-5390 2.750 × 0.750 in · Rubber
