ED-5340-FLAP copy

ED-5340 FLAP

W × H3.800 × 1.450 in MaterialRubber

Request a quote for ED-5340-FLAP → Spec sheet (PDF) Print spec sheet

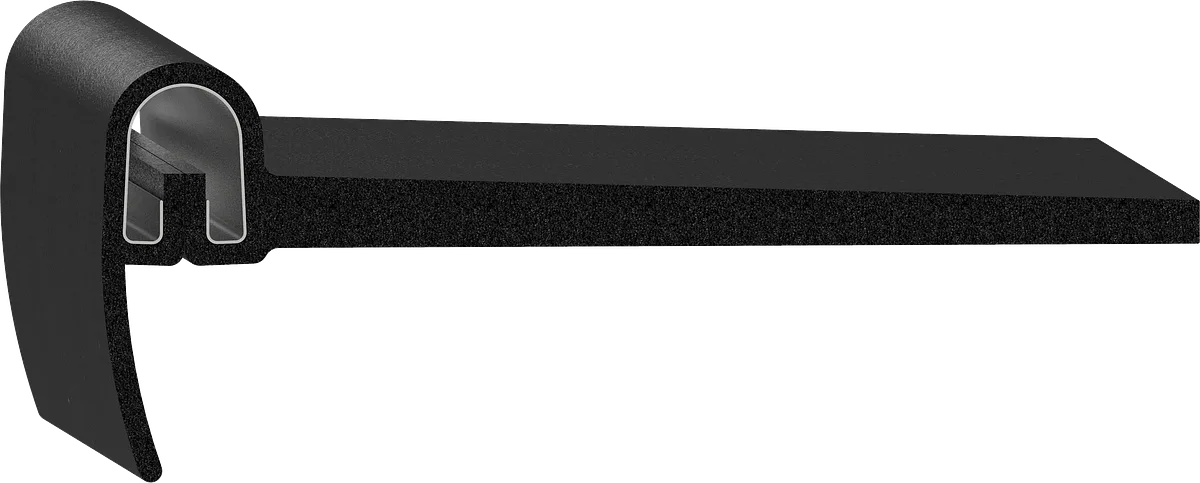

Cross-section drawing of ED-5340-FLAP — Cross-section — ED-5340-FLAPNot to scale

Specification

As drawn.

Specification for ED-5340-FLAP
Width	3.800" 96.5 mm
Height	1.450" 36.8 mm
Flange	0.250" 6.4 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Core	SD-500L Spring Steel
Shape	Flap Seal
Flap	3.170" 80.5 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ED-5335 3.100 × 0.650 in · Rubber ED-5340 3.750 × 0.625 in · Rubber ED-5345 4.530 × 0.648 in · Rubber
