ED-5335 copy

ED-5335

W × H3.100 × 0.650 in MaterialRubber

Request a quote for ED-5335 → Spec sheet (PDF) Print spec sheet

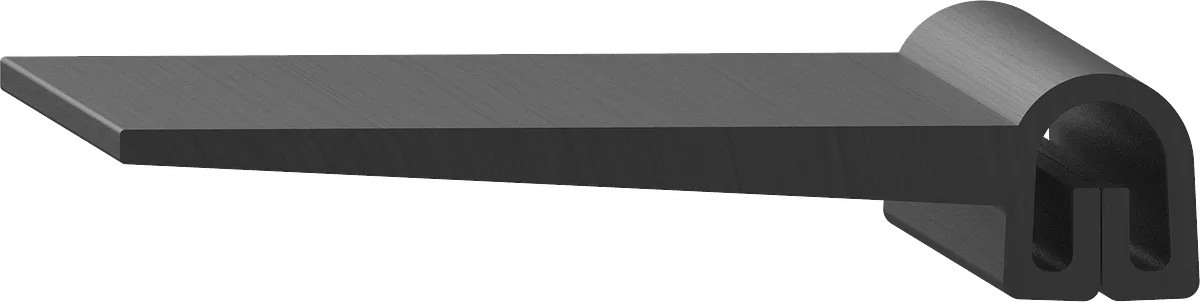

Cross-section drawing of ED-5335 — Cross-section — ED-5335Not to scale

Specification

As drawn.

Specification for ED-5335
Width	3.100" 78.7 mm
Height	0.650" 16.5 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Core	SD-487 Spring Steel
Shape	Flap Seal
Flap	2.525" 64.1 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ED-5340 3.750 × 0.625 in · Rubber ED-5340-FLAP 3.800 × 1.450 in · Rubber ED-5345 4.530 × 0.648 in · Rubber
