ED-50470

W × H2.000 × 2.150 in MaterialRubber

Request a quote for ED-50470 → Spec sheet (PDF) Print spec sheet

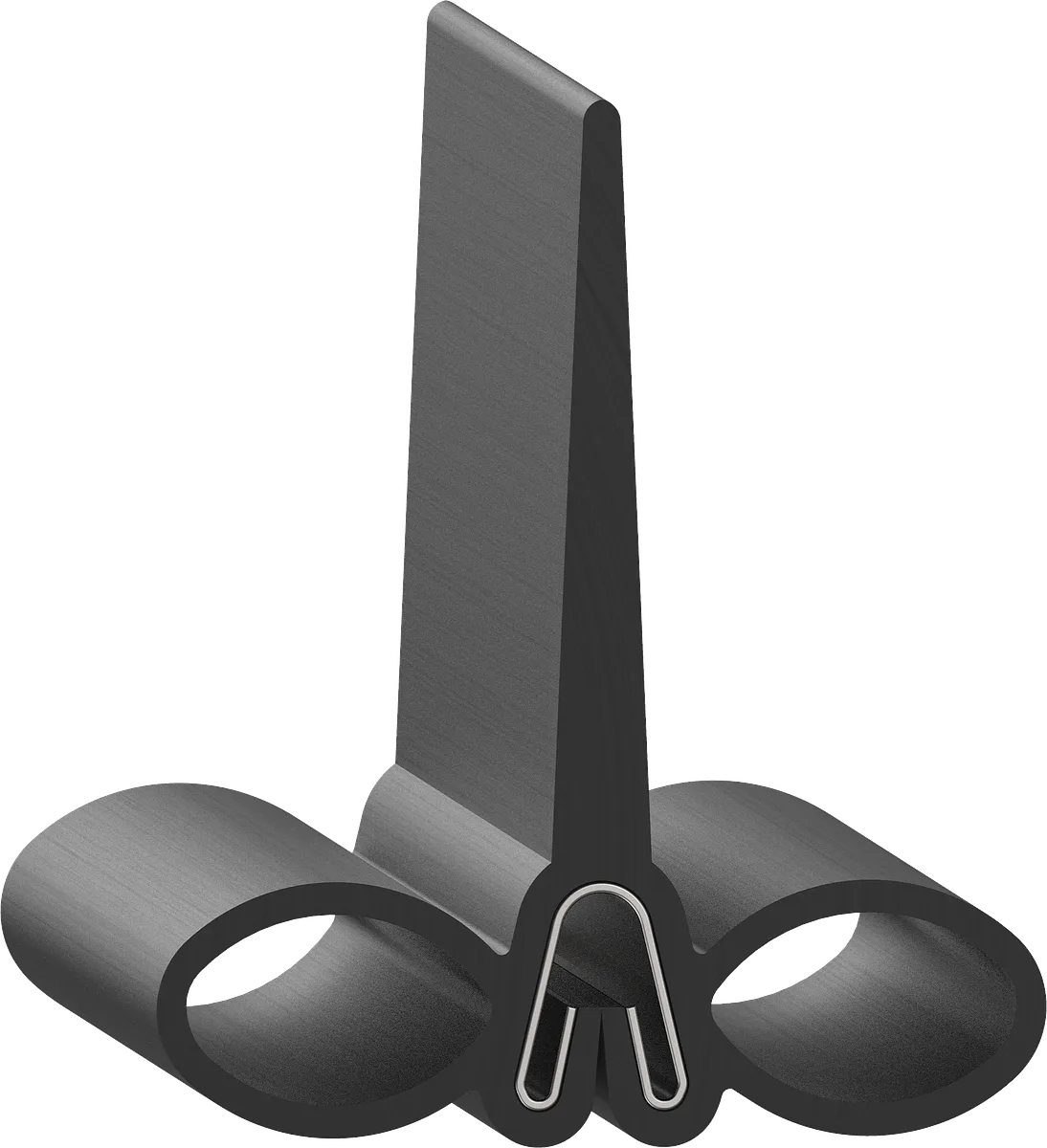

Cross-section drawing of ED-50470 — Cross-section — ED-50470Not to scale

Specification

As drawn.

Specification for ED-50470
Width	2.000" 50.8 mm
Height	2.150" 54.6 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Side
Core	SD-487 Spring Steel
Industries	Recreational Vehicles
Shape	Flap Seal
Flap	1.590" 40.4 mm

Coil lengths: 30 ft · 150 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

5 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ED-50464 2.000 × 1.300 in · Rubber ED-50465 2.100 × 1.750 in · Rubber ED-50468-T 2.400 × 1.970 in · Rubber ED-50470-T 2.000 × 2.150 in · Rubber ED-50480 1.900 × 3.700 in · Rubber
