ED-50468-T copy

ED-50468-T

W × H2.400 × 1.970 in MaterialRubber

Push On Rubber Seals Tape Seals Slide-Out Seals

Request a quote for ED-50468-T → Spec sheet (PDF) Print spec sheet

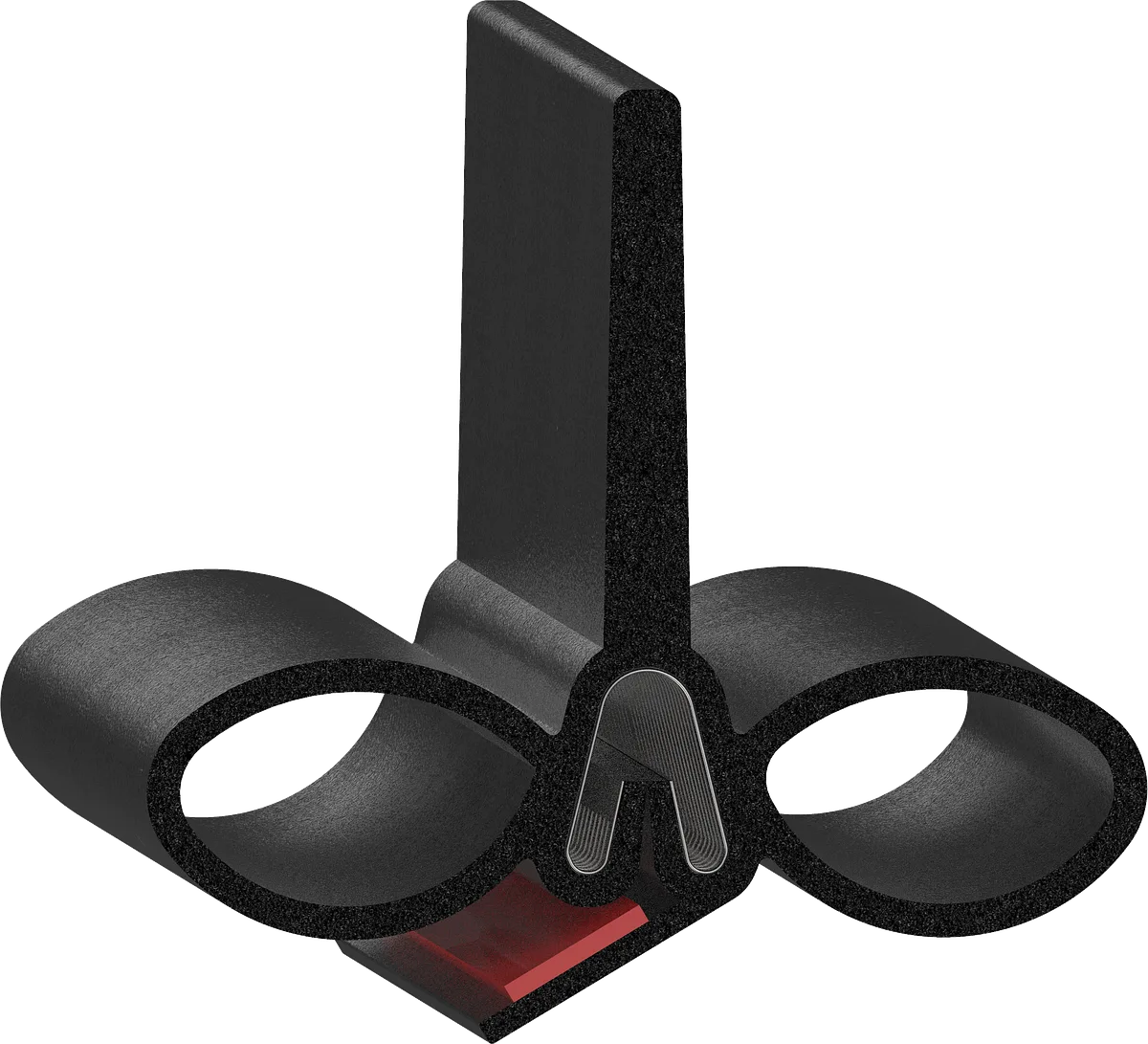

Cross-section drawing of ED-50468-T — Cross-section — ED-50468-TNot to scale

Specification

As drawn.

Specification for ED-50468-T
Width	2.400" 61.0 mm
Height	1.970" 50.0 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Push On, Tape
Bulb position	Side
Core	SD-487 Spring Steel
Tape	3M Heat-Activated Tape
Industries	Recreational Vehicles
Shape	Flap Seal
Also mounts	Push On and Tape
Flap	1.330" 33.8 mm

Coil lengths: 30 ft · 150 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

4 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ED-50464 2.000 × 1.300 in · Rubber ED-50465 2.100 × 1.750 in · Rubber ED-50470 2.000 × 2.150 in · Rubber ED-50470-T 2.000 × 2.150 in · Rubber
