Seal catalogue · Push On Rubber Seals · Part

Uni-Seal-F copy

Uni-Seal F

W × H3.000 × 0.145 in MaterialRubber

Push On Rubber Seals Tape Seals Slide-Out Seals

Request a quote for Uni-Seal-F → Spec sheet (PDF) Print spec sheet

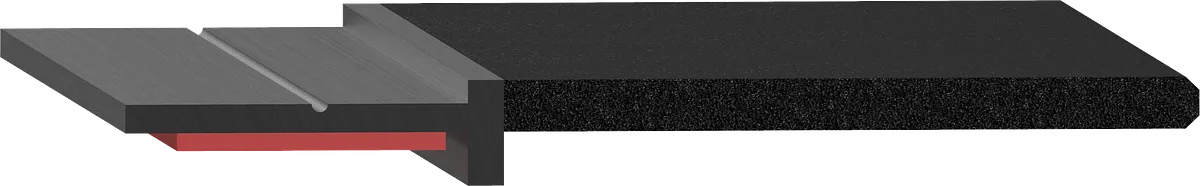

Cross-section drawing of Uni-Seal-F — Cross-section — Uni-Seal-FNot to scale

Specification

As drawn.

Specification for Uni-Seal-F
Width	3.000" 76.2 mm
Height	0.145" 3.7 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Tape
Tape	3M Heat-Activated Tape
Industries	Recreational Vehicles
Second durometer	90 Durometer
Shape	Flap Seal

Coil lengths: 150 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

Uni-Seal 2.600 × 0.850 in · Rubber Uni-Seal-B 1.057 × 0.850 in · Rubber
