Seal catalogue · Tape Seals · Part

TS-223 copy

TS-223

W × H0.496 × 1.465 in MaterialRubber

Tape Seals Other Extrusions Edge Trims

Request a quote for TS-223 → Spec sheet (PDF) Print spec sheet

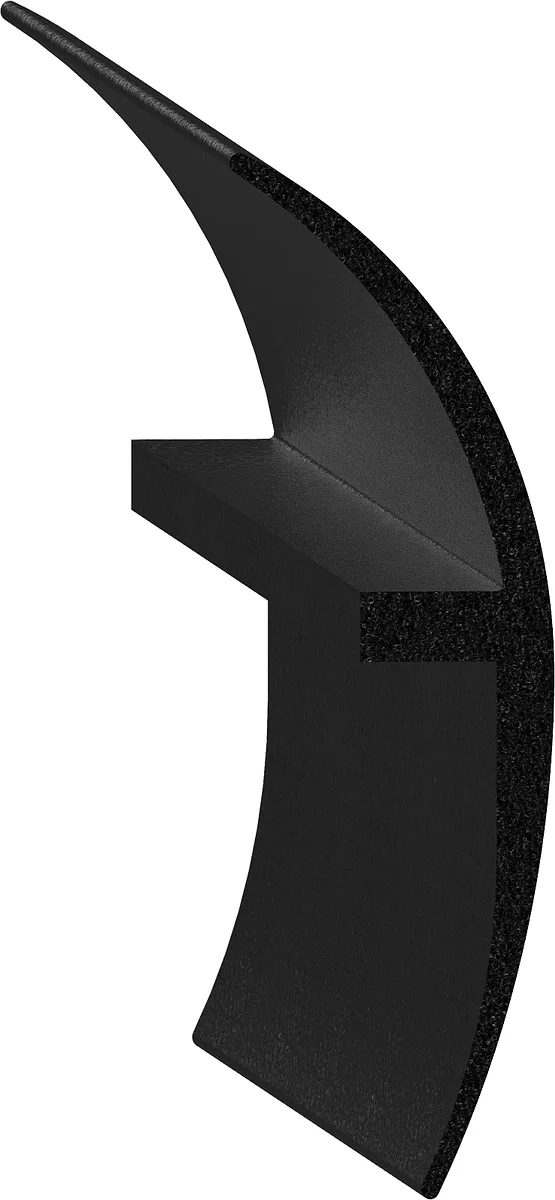

Cross-section drawing of TS-223 — Cross-section — TS-223Not to scale

Specification

As drawn.

Specification for TS-223
Width	0.496" 12.6 mm
Height	1.465" 37.2 mm
Material	Rubber
Type	Dense
Durometer	90 Shore A
Colour	Black
Mount	Tape

Dimensions in inches to three places, as on the drawing; millimetres computed.
