Seal catalogue · Push On Rubber Seals · Part

TS-213 copy

TS-213

W × H0.980 × 0.984 in MaterialRubber

Push On Rubber Seals Tape Seals

Request a quote for TS-213 → Spec sheet (PDF) Print spec sheet

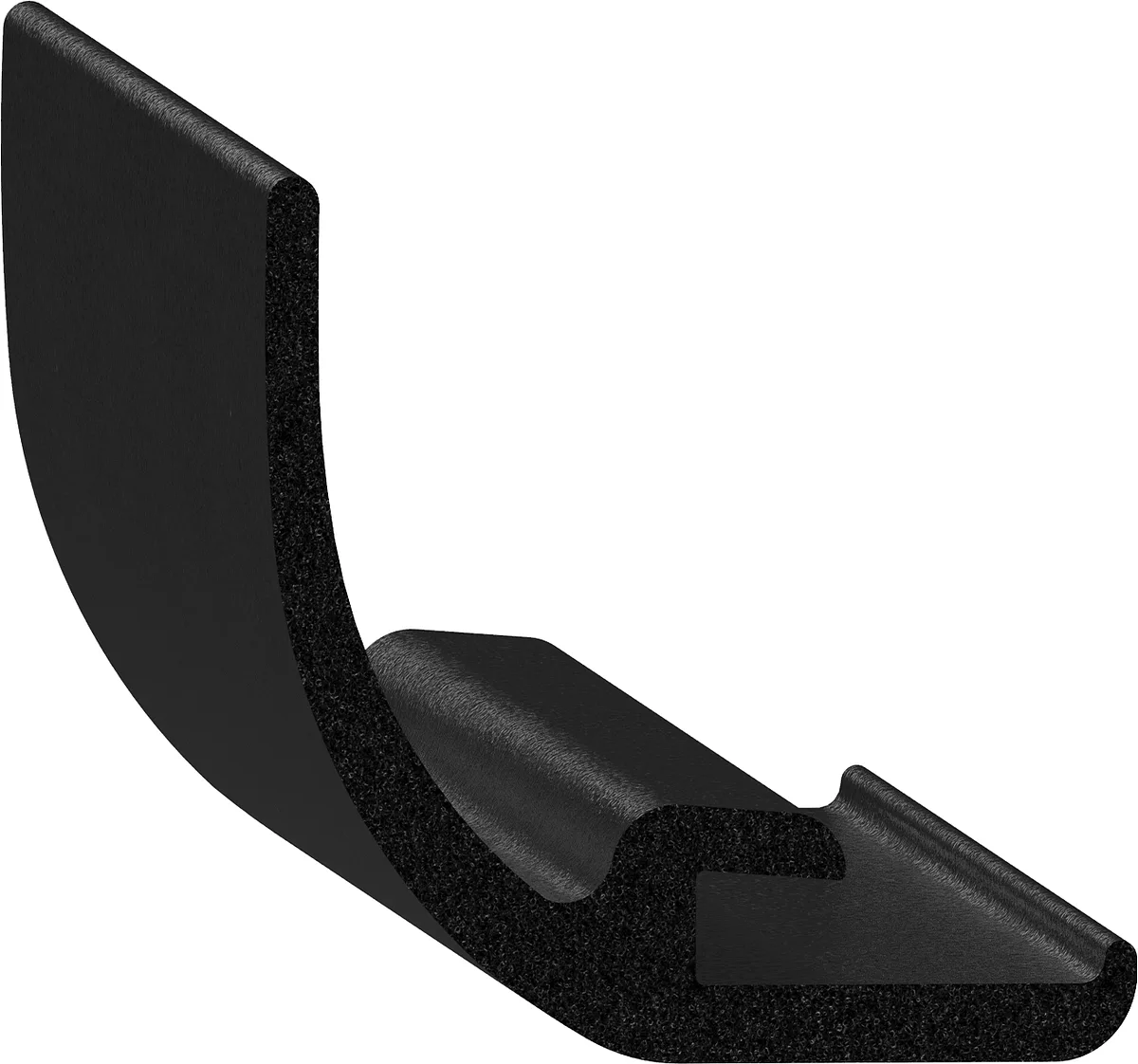

Cross-section drawing of TS-213 — Cross-section — TS-213Not to scale

Specification

As drawn.

Specification for TS-213
Width	0.980" 24.9 mm
Height	0.984" 25.0 mm
Flange	0.960" 24.4 mm
Material	Rubber
Type	Dense
Durometer	70 Shore A
Colour	Black

Dimensions in inches to three places, as on the drawing; millimetres computed.
