Seal catalogue · Push On Rubber Seals · Part

TS-183 copy

TS-183

W × H1.250 × 0.275 in MaterialRubber
Push On Rubber Seals Tape Seals
Request a quote for TS-183 → Spec sheet (PDF) Print spec sheet

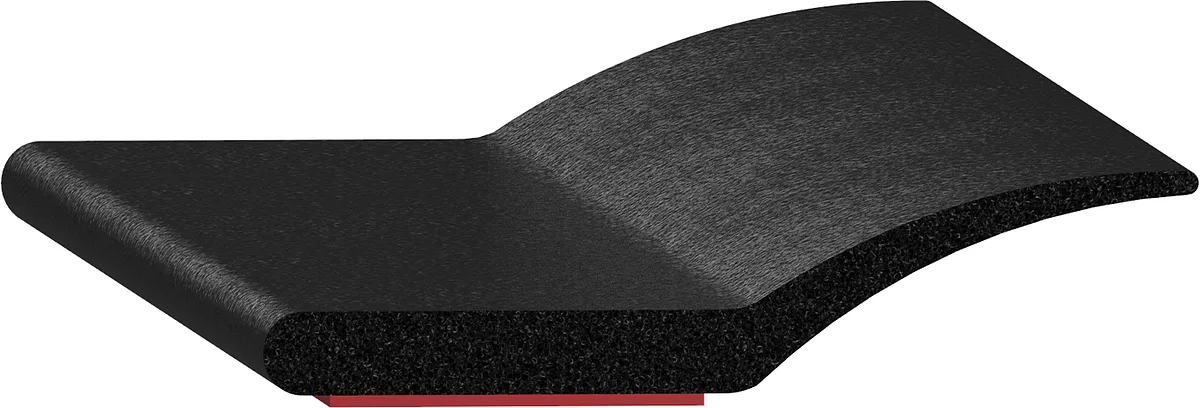

Cross-section drawing of TS-183
Cross-section — TS-183Not to scale
Specification

As drawn.

Specification for TS-183
Width 1.250" 31.8 mm
Height 0.275" 7.0 mm
Material Rubber
Type Sponge
Durometer 2A2 (sponge grade)
Colour Black
Mount Tape
Tape Acrylic Adhesive
ShapeFlap Seal
Flap1.250" 31.8 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.
