TS-116 copy

TS-116

W × H1.500 × 0.750 in MaterialNeoprene

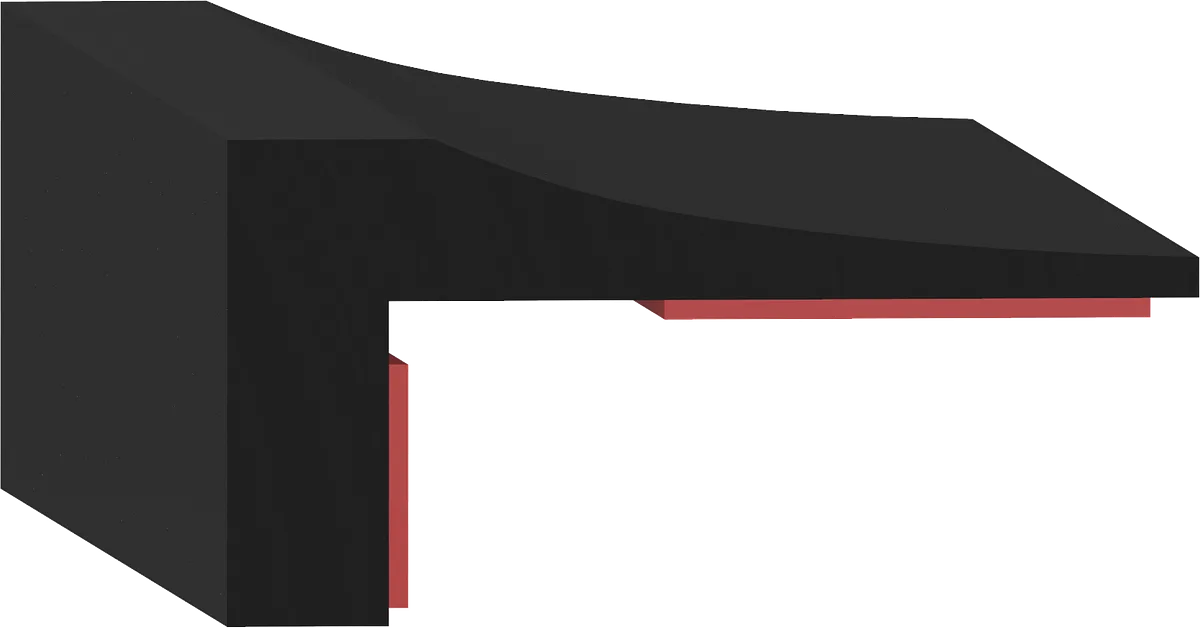

Cross-section drawing of TS-116
Cross-section — TS-116Not to scale
Specification

As drawn.

Specification for TS-116
Width 1.500" 38.1 mm
Height 0.750" 19.0 mm
Material Neoprene
Type Dense
Durometer 60 Shore A
Colour Black
Mount Tape
Tape 3M Heat-Activated Tape

Dimensions in inches to three places, as on the drawing; millimetres computed.
