Seal catalogue · Bulb Seals · Part

SD-940 copy

SD-940

W × H1.645 × 0.750 in MaterialTPE

Bulb Seals

Request a quote for SD-940 → Spec sheet (PDF) Print spec sheet

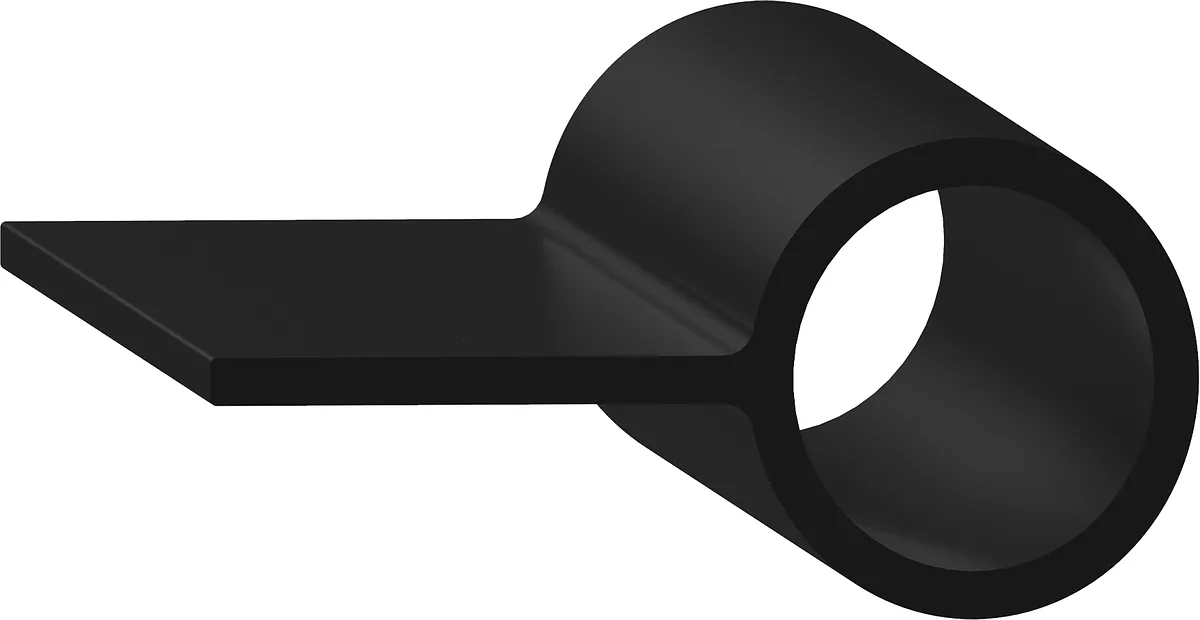

Cross-section drawing of SD-940 — Cross-section — SD-940Not to scale

Specification

As drawn.

Specification for SD-940
Width	1.645" 41.8 mm
Height	0.750" 19.0 mm
Material	TPE
Durometer	55 Shore A
Colour	Black
Mount	Push On
Bulb position	Side
Shape	Bulb Seal
Flap	0.895" 22.7 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.
