Seal catalogue · Bulb Seals · Part

SD-910-Solid-Bulb copy

SD-910-Solid Bulb

W × H0.970 × 0.575 in MaterialRubber
Bulb Seals
Request a quote for SD-910-Solid-Bulb → Spec sheet (PDF) Print spec sheet

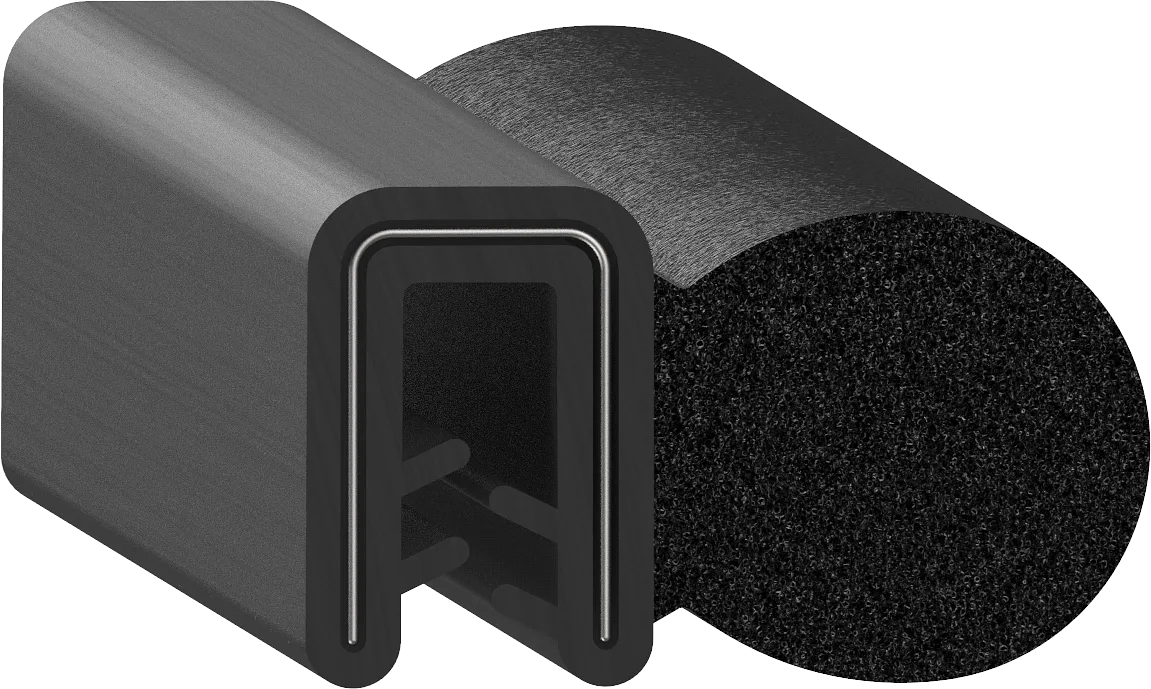

Cross-section drawing of SD-910-Solid-Bulb
Cross-section — SD-910-Solid-BulbNot to scale
Specification

As drawn.

Specification for SD-910-Solid-Bulb
Width 0.970" 24.6 mm
Height 0.575" 14.6 mm
Flange 0.180" 4.6 mm
Material Rubber
Type Dense
Durometer 70 Shore A
Colour Black
Mount Push On
Bulb position Side
Core 1.120in Wire
Second durometer2A4

Dimensions in inches to three places, as on the drawing; millimetres computed.
