Seal catalogue · Tape Seals · Part

SD-902-T copy

SD-902-T

W × H1.500 × 1.500 in MaterialRubber
Tape Seals Bulb Seals
Request a quote for SD-902-T → Spec sheet (PDF) Print spec sheet

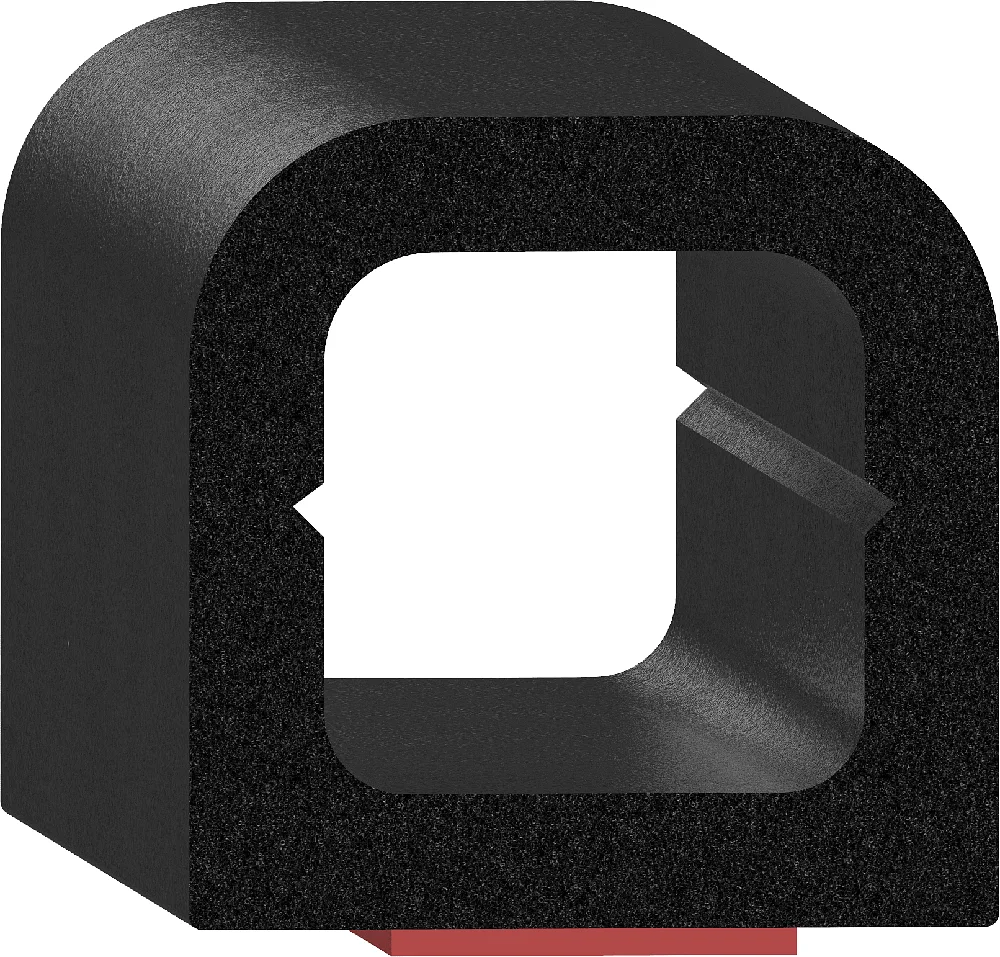

Cross-section drawing of SD-902-T
Cross-section — SD-902-TNot to scale
Specification

As drawn.

Specification for SD-902-T
Width 1.500" 38.1 mm
Height 1.500" 38.1 mm
Material Rubber
Type Sponge
Colour Black
Mount Tape
Bulb position Top
Tape 3M Heat-Activated Tape
ShapeBulb Seal and D-Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.
