Seal catalogue · Push On Rubber Seals · Part

SD-842 copy

SD-842

W × H1.620 × 1.690 in MaterialRubber
Push On Rubber Seals
Request a quote for SD-842 → Spec sheet (PDF) Print spec sheet

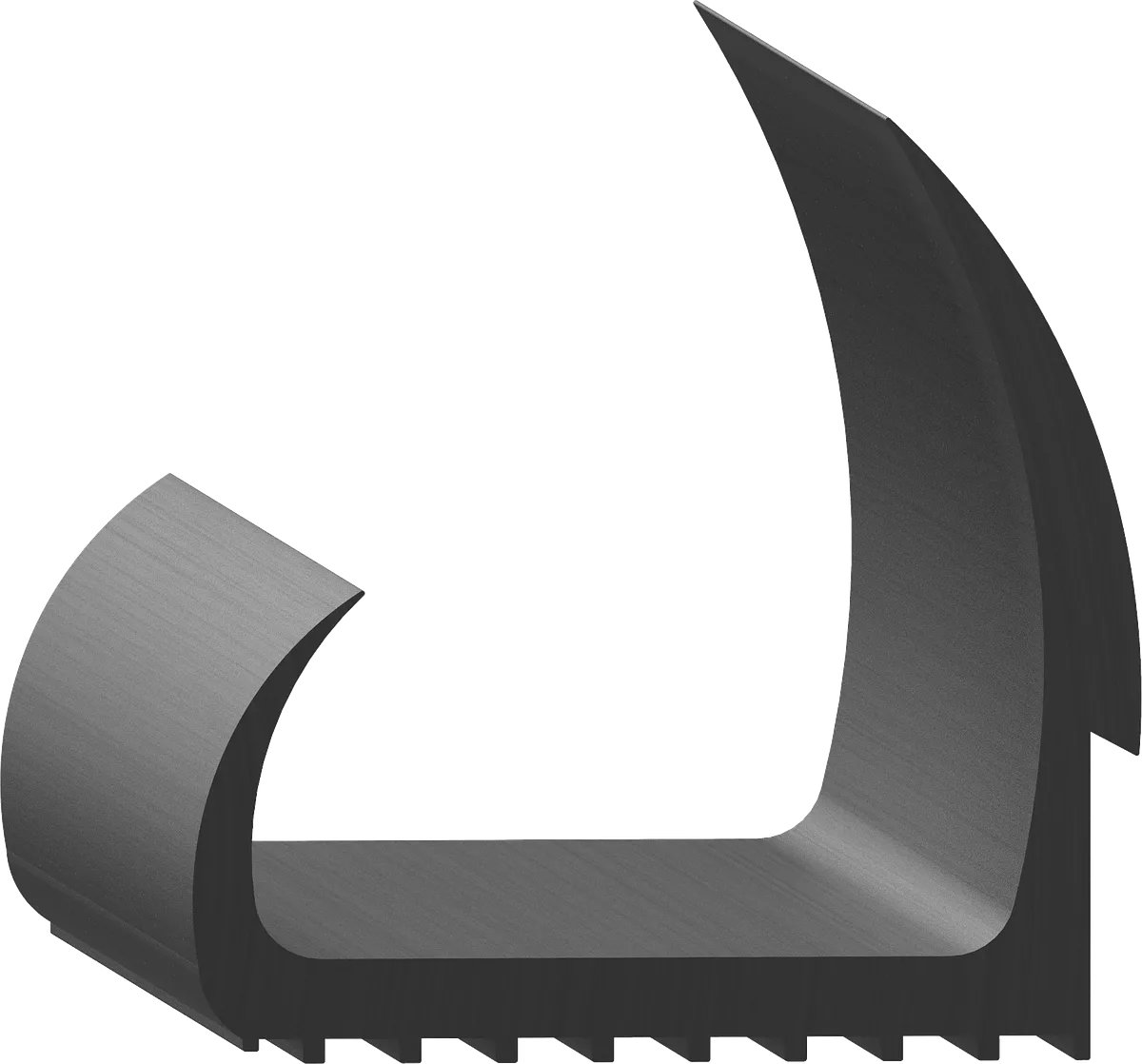

Cross-section drawing of SD-842
Cross-section — SD-842Not to scale
Specification

As drawn.

Specification for SD-842
Width 1.620" 41.1 mm
Height 1.690" 42.9 mm
Material Rubber
Type Dense
Durometer 70 Shore A
Colour Black
ShapeFlap Seal
Flap1.690" 42.9 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.
