Seal catalogue · Tape Seals · Part

SD-804-T copy

SD-804-T

W × H0.610 × 0.360 in MaterialRubber

Tape Seals Bulb Seals

Request a quote for SD-804-T → Spec sheet (PDF) Print spec sheet

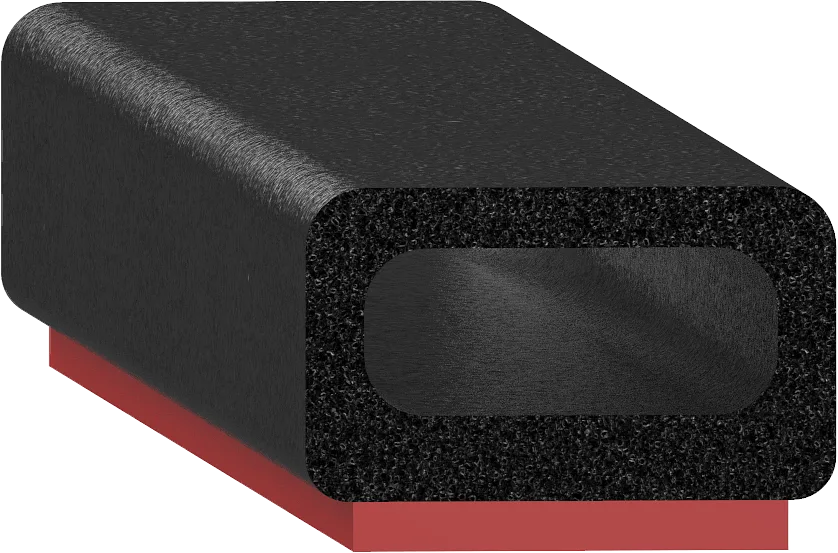

Cross-section drawing of SD-804-T — Cross-section — SD-804-TNot to scale

Specification

As drawn.

Specification for SD-804-T
Width	0.610" 15.5 mm
Height	0.360" 9.1 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Tape
Bulb position	Top
Tape	3M Heat-Activated Tape
Shape	Bulb Seal and D-Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

5 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-300-T 0.750 × 0.750 in · Rubber SD-636-T 0.728 × 0.728 in · Rubber SD-774-T 0.750 × 0.500 in · Rubber SD-777-T 1.230 × 1.000 in · Rubber TS-031 0.500 × 0.500 in · Rubber
