SD-503-IT-NS

W × H0.750 × 0.650 in MaterialRubber

Tape Seals Bulb Seals

Request a quote for SD-503-IT-NS → Spec sheet (PDF) Print spec sheet

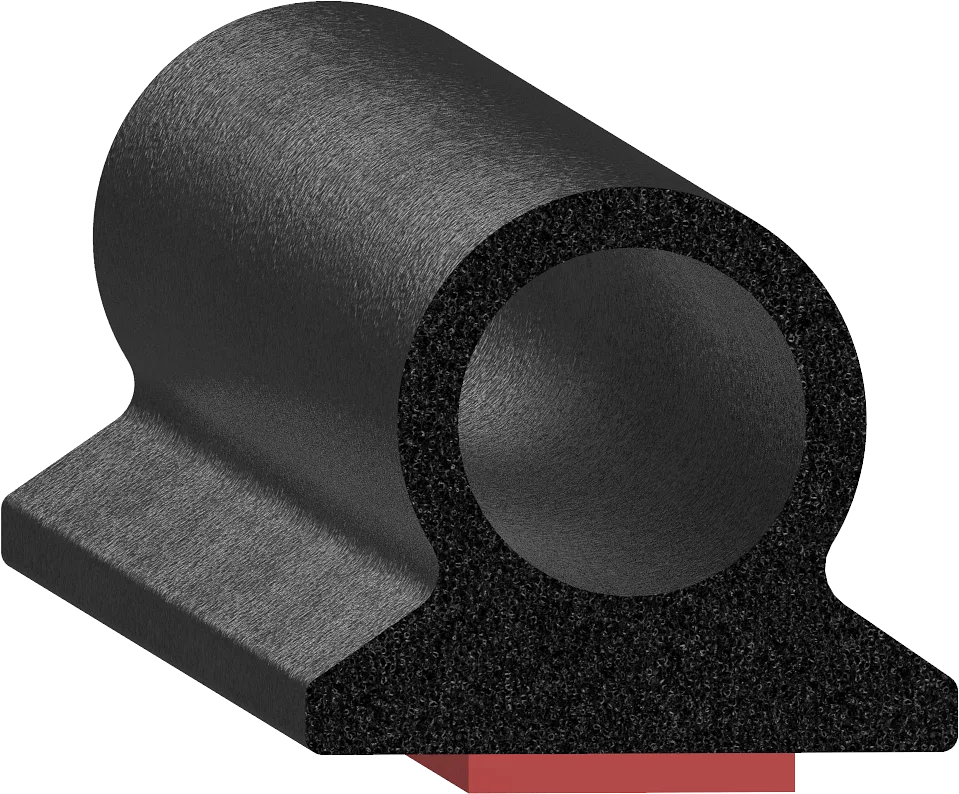

Cross-section drawing of SD-503-IT-NS — Cross-section — SD-503-IT-NSNot to scale

Specification

As drawn.

Specification for SD-503-IT-NS
Width	0.750" 19.0 mm
Height	0.650" 16.5 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Tape
Tape	3M Heat-Activated Tape
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

1 interchangeable part

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-501-T 0.500 × 0.525 in · Rubber
