Seal catalogue · Push On Rubber Seals · Part

SD-497-N copy

SD-497-N

W × H1.325 × 0.620 in MaterialNitrile
Push On Rubber Seals Special Compounds
Request a quote for SD-497-N → Spec sheet (PDF) Print spec sheet

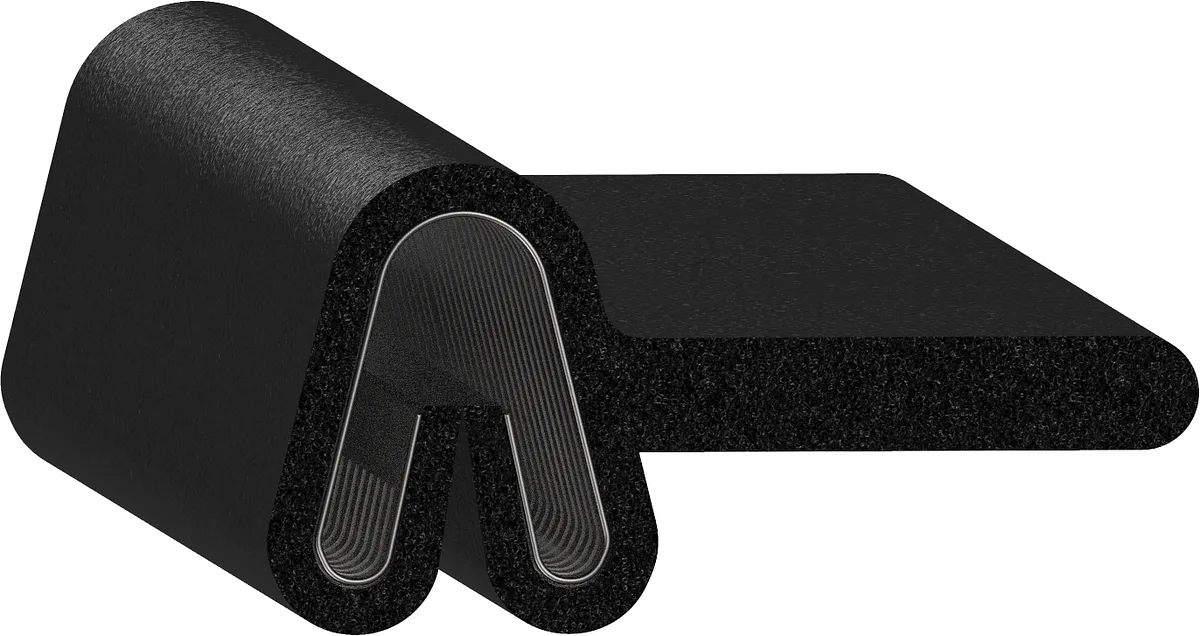

Cross-section drawing of SD-497-N
Cross-section — SD-497-NNot to scale
Specification

As drawn.

Specification for SD-497-N
Width 1.325" 33.7 mm
Height 0.620" 15.7 mm
Flange 0.125" 3.2 mm
Material Nitrile
Type Dense
Durometer 75 Shore A
Colour Black
Mount Push On
Core SD-487 Spring Steel
ShapeFlap Seal
Flap0.750" 19.0 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.
