Seal catalogue · Push On Rubber Seals · Part

SD-455-T copy

SD-455-T

W × H2.375 × 2.594 in MaterialRubber

Push On Rubber Seals Tape Seals Slide-Out Seals

Request a quote for SD-455-T → Spec sheet (PDF) Print spec sheet

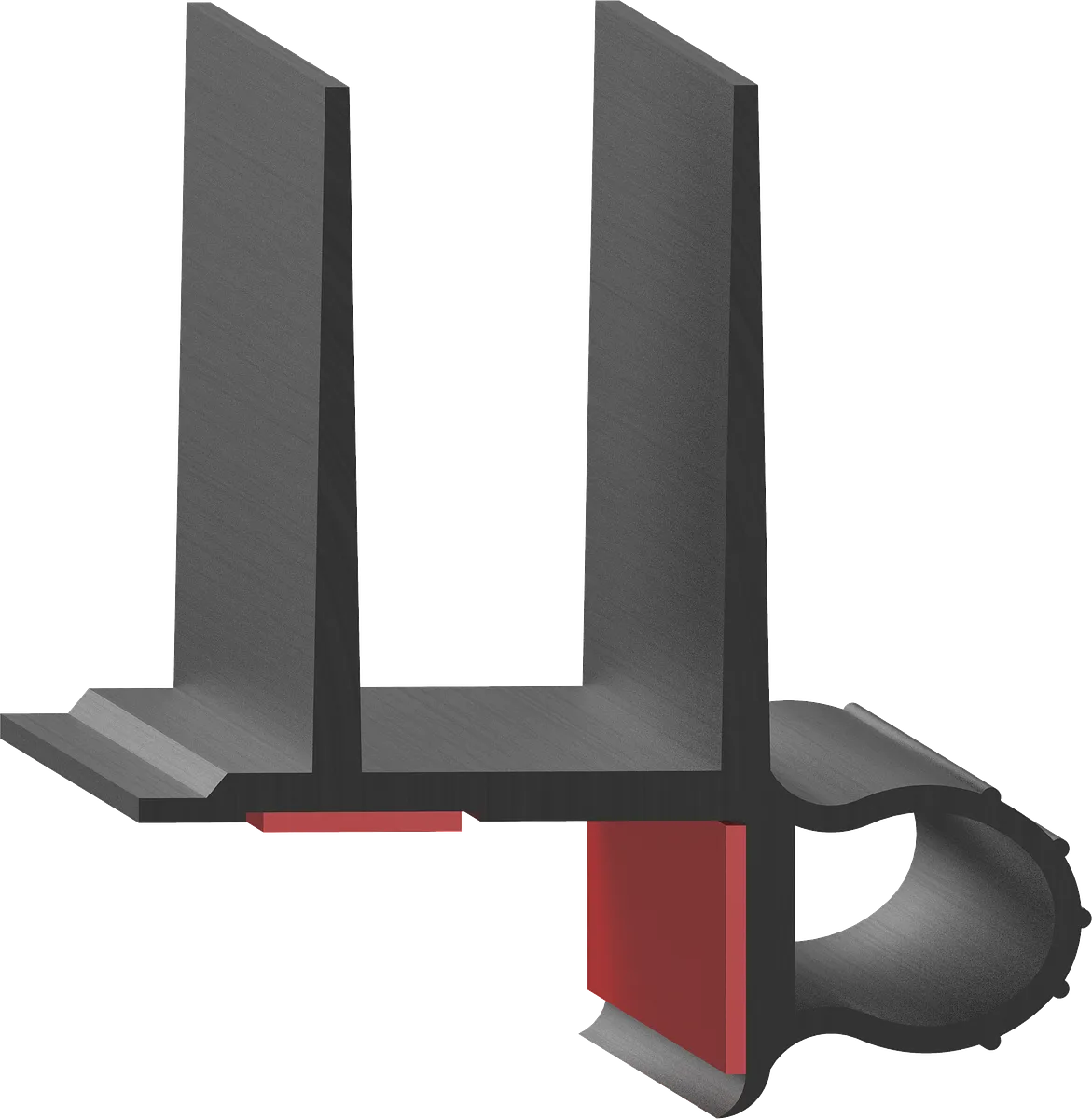

Cross-section drawing of SD-455-T — Cross-section — SD-455-TNot to scale

Specification

As drawn.

Specification for SD-455-T
Width	2.375" 60.3 mm
Height	2.594" 65.9 mm
Material	Rubber
Type	Dense
Colour	Black
Mount	Tape
Tape	3M Heat-Activated Tape
Flap	1.730" 43.9 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.
