SD-416 copy

SD-416

W × H1.000 × 1.400 in MaterialRubber

Request a quote for SD-416 → Spec sheet (PDF) Print spec sheet

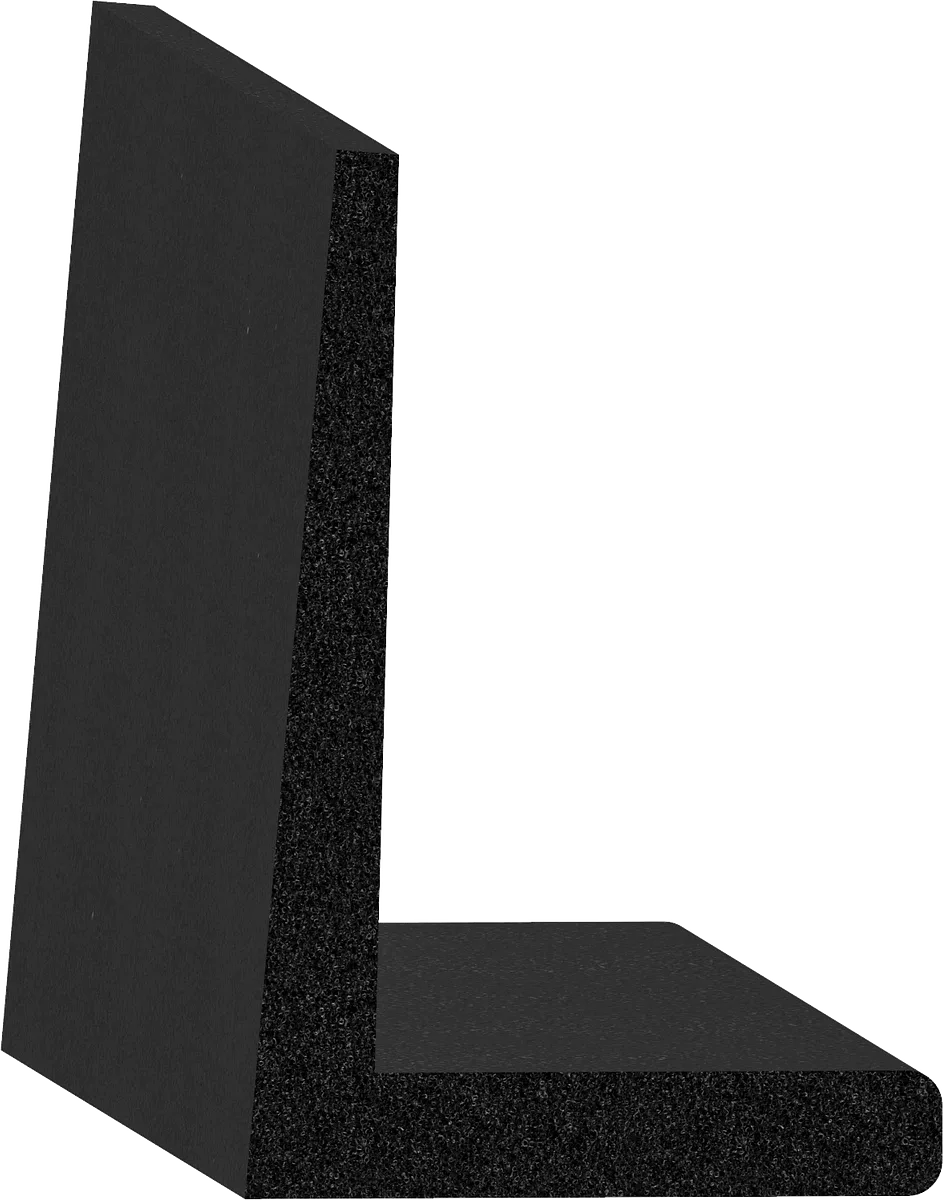

Cross-section drawing of SD-416 — Cross-section — SD-416Not to scale

Specification

As drawn.

Specification for SD-416
Width	1.000" 25.4 mm
Height	1.400" 35.6 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Shape	Flap Seal
Flap	1.500" 38.1 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

1 interchangeable part

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-12338 3.100 × 1.000 in · Rubber
