Specification

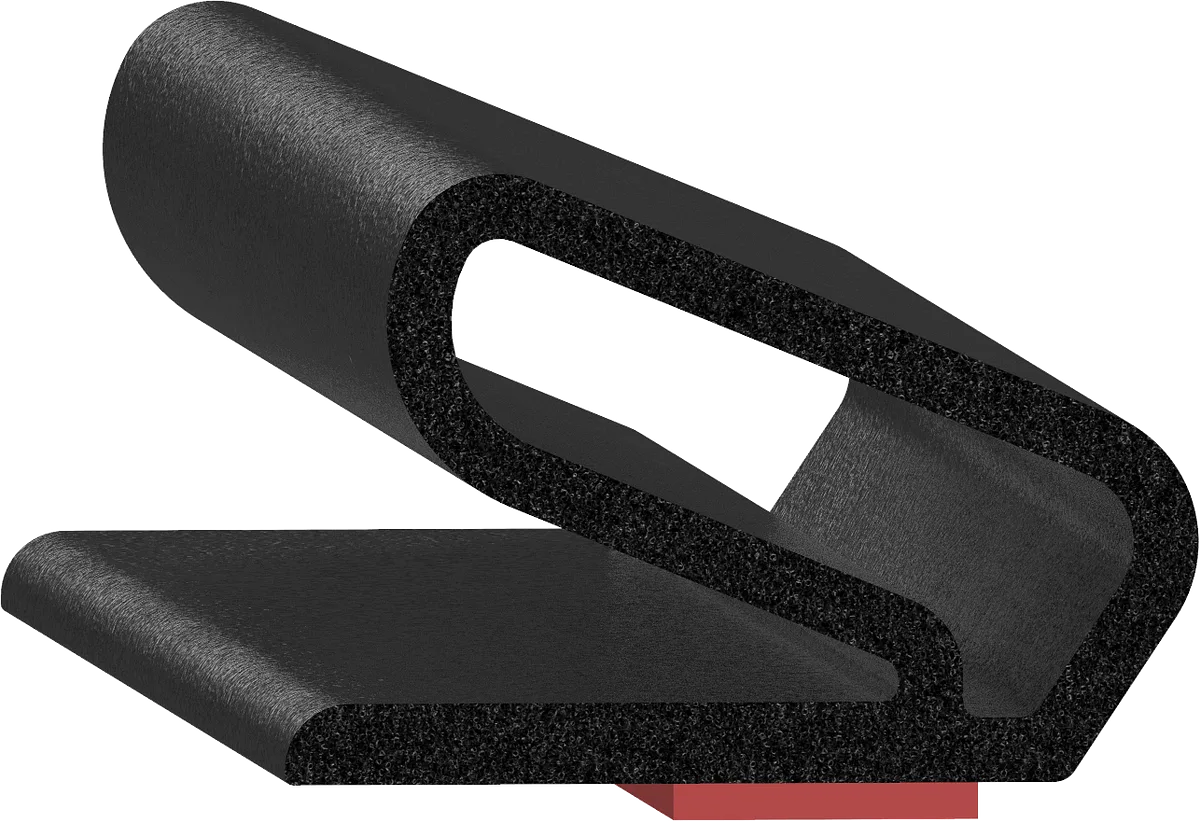

As drawn.
| Width | 1.125" 28.6 mm |
|---|---|
| Height | 0.750" 19.0 mm |
| Material | Rubber |
| Type | Sponge |
| Durometer | 2A5 (sponge grade) |
| Colour | Black |
| Mount | Tape |
| Tape | 3M Heat-Activated Tape |
| Shape | Bulb Seal |
Dimensions in inches to three places, as on the drawing; millimetres computed.
1 interchangeable part
Substitutes from the catalogue.
Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.
Need it in volume, or to a change?
