Seal catalogue · Other Extrusions · Part

SD-337-5 copy

SD-337-5

W × H2.500 × 1.125 in MaterialRubber

Other Extrusions

Request a quote for SD-337-5 → Spec sheet (PDF) Print spec sheet

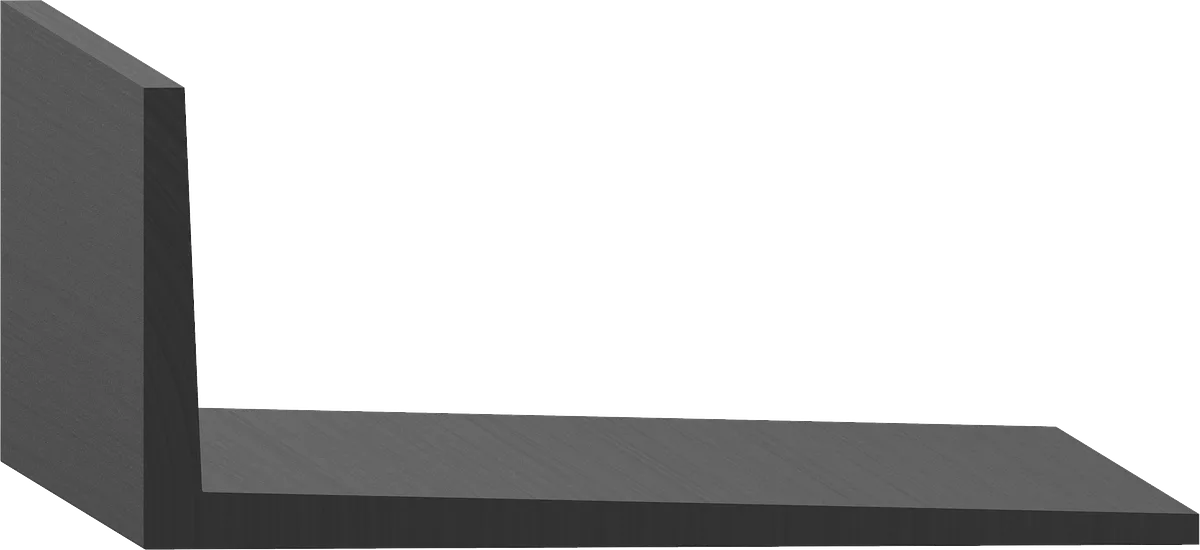

Cross-section drawing of SD-337-5 — Cross-section — SD-337-5Not to scale

Specification

As drawn.

Specification for SD-337-5
Width	2.500" 63.5 mm
Height	1.125" 28.6 mm
Material	Rubber
Type	Dense
Durometer	70 Shore A
Colour	Black

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-336 1.900 × 1.100 in · Rubber SD-338 3.000 × 1.125 in · Rubber
