Seal catalogue · Tape Seals · Part

SD-331-T copy

SD-331-T

W × H0.685 × 0.750 in MaterialRubber

Tape Seals Bulb Seals

Request a quote for SD-331-T → Spec sheet (PDF) Print spec sheet

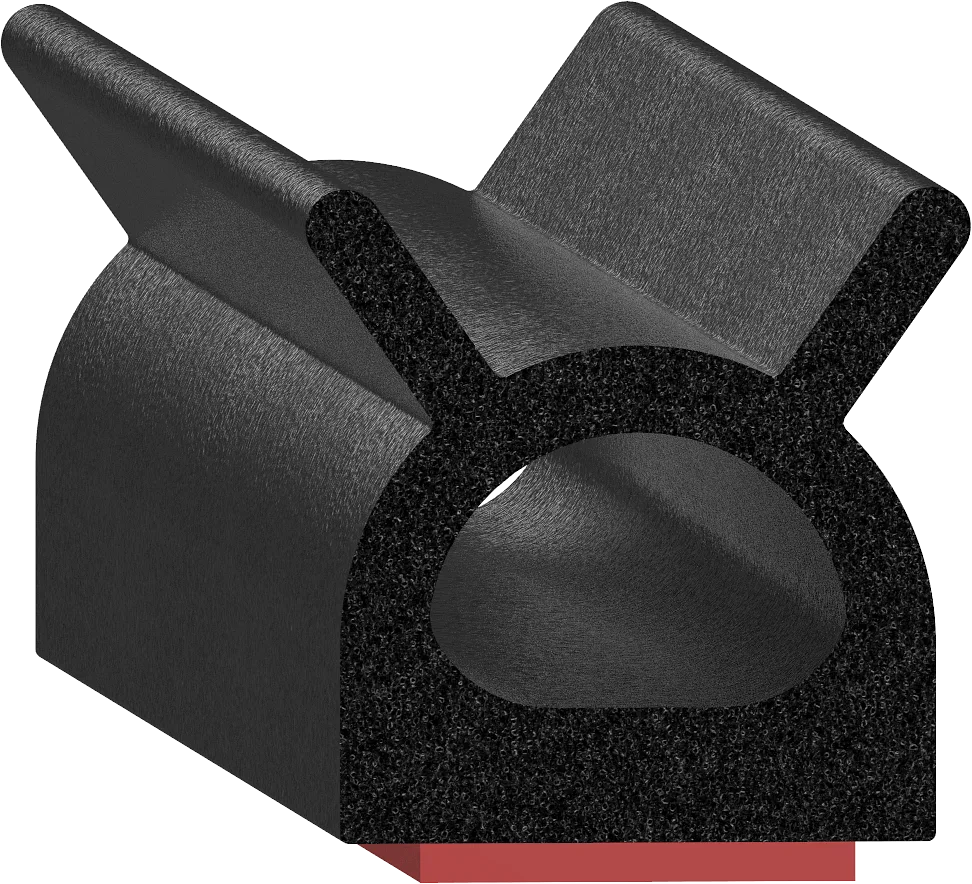

Cross-section drawing of SD-331-T — Cross-section — SD-331-TNot to scale

Specification

As drawn.

Specification for SD-331-T
Width	0.685" 17.4 mm
Height	0.750" 19.0 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Tape
Bulb position	Top
Tape	3M Heat-Activated Tape
Industries	Construction Equipment
Shape	Bulb Seal and D-Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-333-PT 0.650 × 0.540 in · Rubber SD-333-T 0.655 × 0.540 in · Rubber

Need it in volume, or to a change?

Tell an engineer the application.

Request a quote →
