Seal catalogue · Tape Seals · Part

SD-320-T copy

SD-320-T

W × H0.690 × 1.500 in MaterialRubber

Tape Seals

Request a quote for SD-320-T → Spec sheet (PDF) Print spec sheet

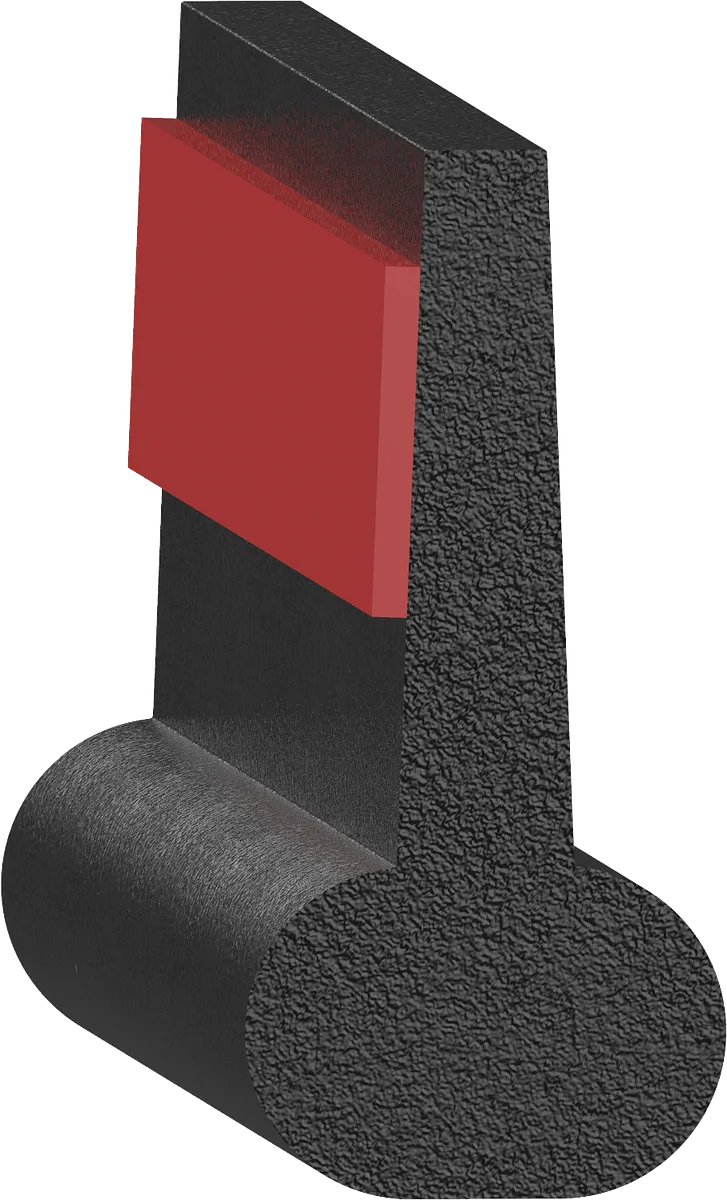

Cross-section drawing of SD-320-T — Cross-section — SD-320-TNot to scale

Specification

As drawn.

Specification for SD-320-T
Width	0.690" 17.5 mm
Height	1.500" 38.1 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Tape
Tape	3M Heat-Activated Tape

Dimensions in inches to three places, as on the drawing; millimetres computed.
