Seal catalogue · Tape Seals · Part

SD-301-T copy

SD-301-T

W × H0.750 × 0.475 in MaterialRubber

Tape Seals Bulb Seals

Request a quote for SD-301-T → Spec sheet (PDF) Print spec sheet

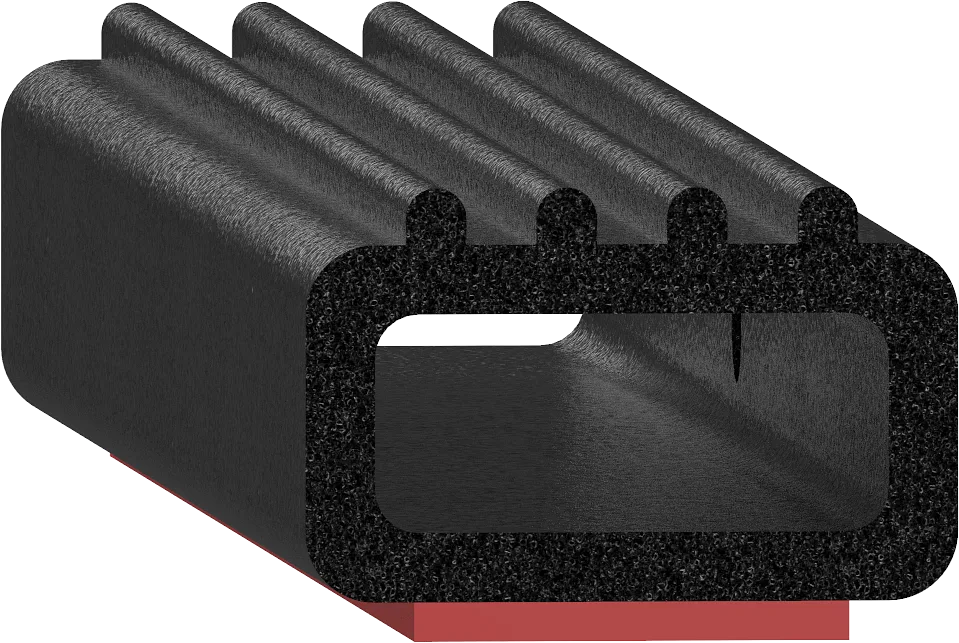

Cross-section drawing of SD-301-T — Cross-section — SD-301-TNot to scale

Specification

As drawn.

Specification for SD-301-T
Width	0.750" 19.0 mm
Height	0.475" 12.1 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Tape
Bulb position	Top
Tape	3M Heat-Activated Tape
Industries	Emergency Vehicles
Shape	Bulb Seal, D-Seal, and Ribbed Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-301-PT 0.750 × 0.475 in · Rubber SD-303-T 0.550 × 0.330 in · Rubber
