Seal catalogue · Bulb Seals · Part

SD-234 copy

SD-234

W × H1.125 × 1.000 in MaterialRubber

Bulb Seals

Request a quote for SD-234 → Spec sheet (PDF) Print spec sheet

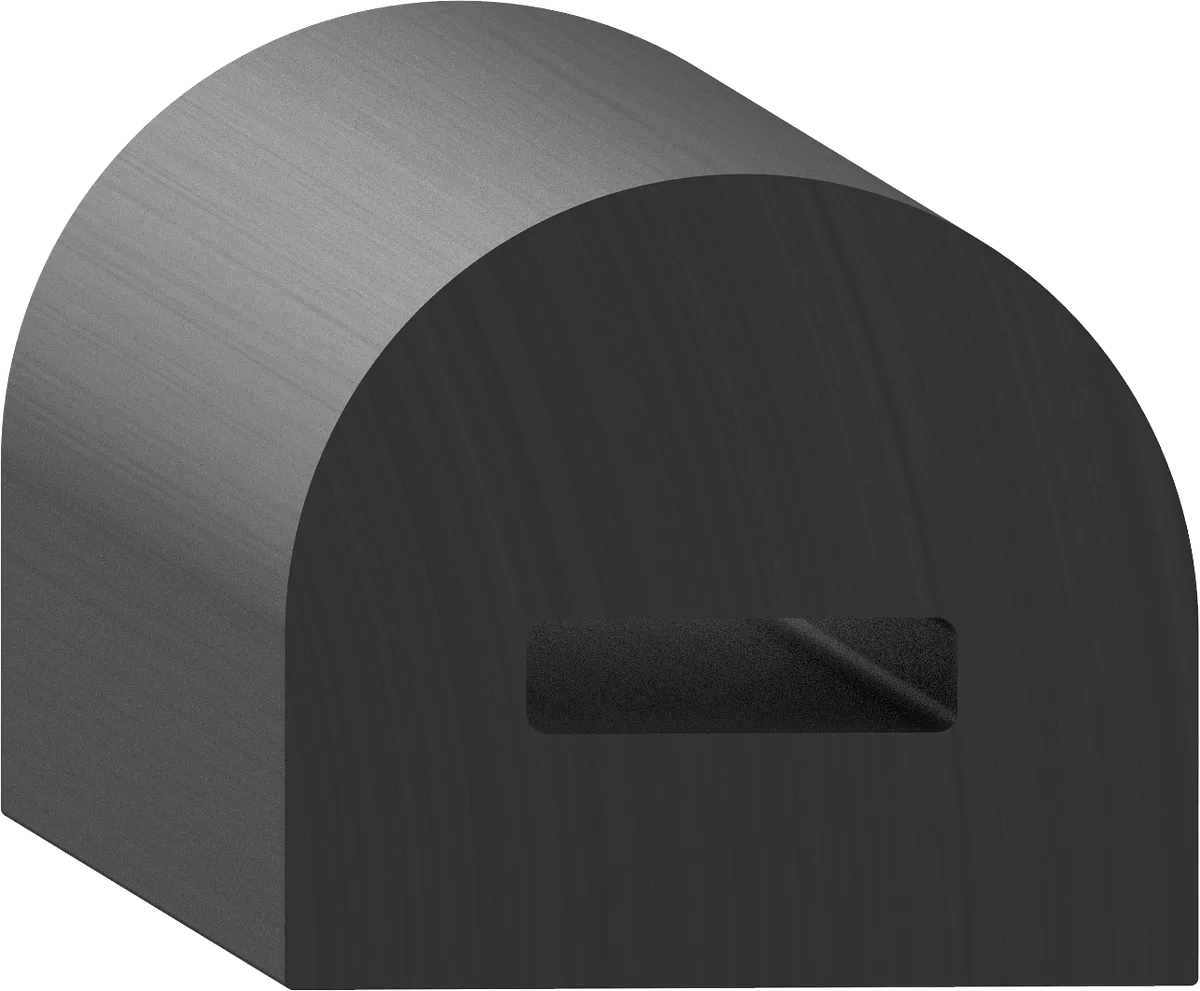

Cross-section drawing of SD-234 — Cross-section — SD-234Not to scale

Specification

As drawn.

Specification for SD-234
Width	1.125" 28.6 mm
Height	1.000" 25.4 mm
Material	Rubber
Type	Dense
Durometer	60 Shore A
Colour	Black
Bulb position	Top
Shape	Bulb Seal and D-Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.
