Seal catalogue · Tape Seals · Part

SD-217-AT copy

SD-217-AT

W × H0.662 × 0.562 in MaterialRubber

Tape Seals Bulb Seals

Request a quote for SD-217-AT → Spec sheet (PDF) Print spec sheet

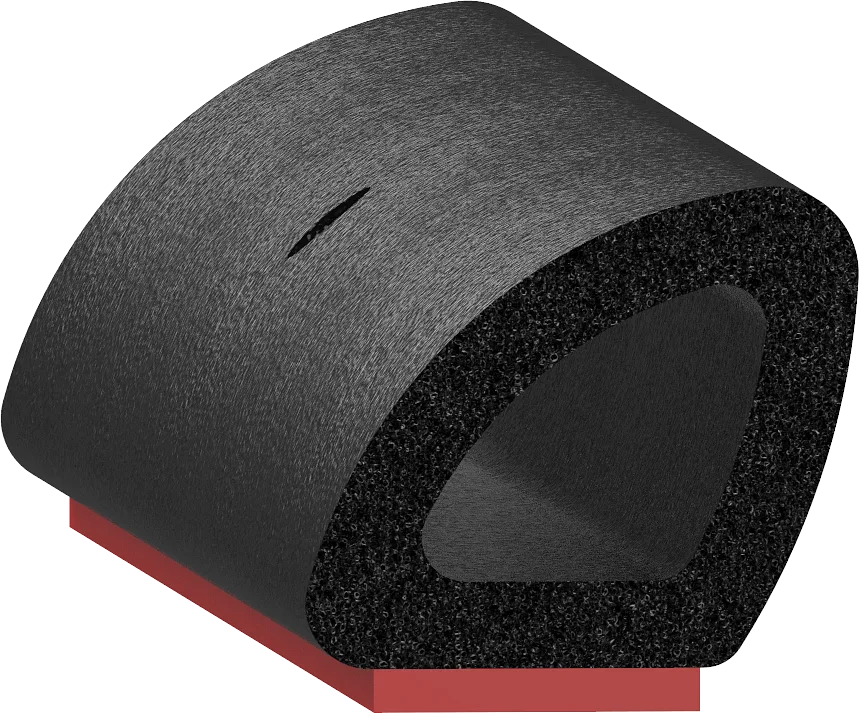

Cross-section drawing of SD-217-AT — Cross-section — SD-217-ATNot to scale

Specification

As drawn.

Specification for SD-217-AT
Width	0.662" 16.8 mm
Height	0.562" 14.3 mm
Material	Rubber
Type	Sponge
Durometer	2A2 (sponge grade)
Colour	Black
Mount	Tape
Bulb position	Top
Tape	3M Heat-Activated Tape
Industries	Transportation
Shape	Bulb Seal and D-Seal

Coil lengths: 100 ft · 250 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-224-T 1.250 × 1.475 in · Rubber SD-225-T 0.950 × 0.750 in · Rubber
