Seal catalogue · Bulb Seals · Part

SD-169-500L copy

SD-169 w/ 500L

W × H0.550 × 2.000 in MaterialRubber

Bulb Seals

Request a quote for SD-169-500L → Spec sheet (PDF) Print spec sheet

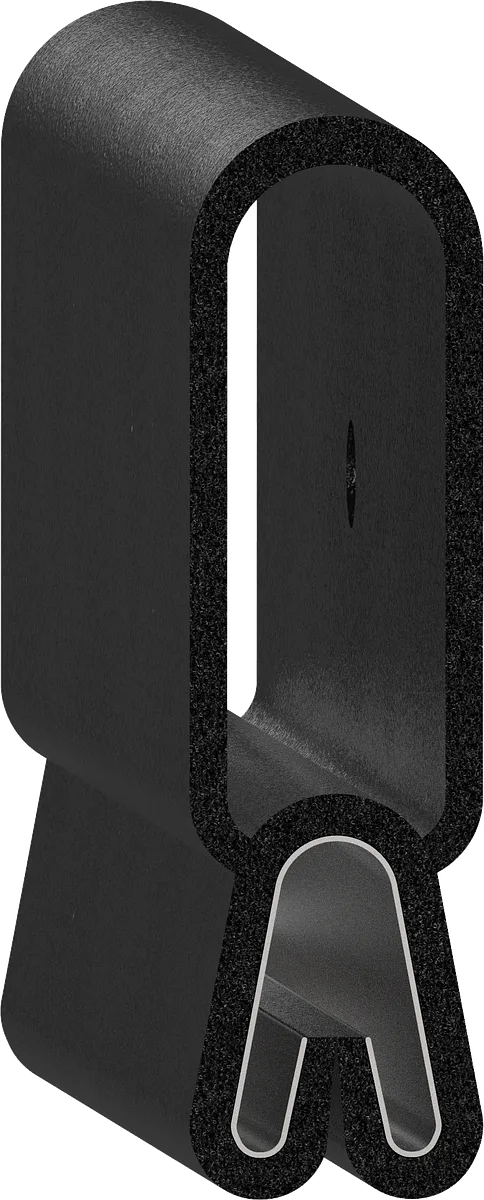

Cross-section drawing of SD-169-500L — Cross-section — SD-169-500LNot to scale

Specification

As drawn.

Specification for SD-169-500L
Width	0.550" 14.0 mm
Height	2.000" 50.8 mm
Flange	0.250" 6.4 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Top
Core	SD-500L Spring Steel
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

4 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-169 0.550 × 1.900 in · Rubber SD-170 1.050 × 1.850 in · Rubber SD-171 1.000 × 2.600 in · Rubber SD-172 0.850 × 2.250 in · Rubber
