Seal catalogue · Edge Trims · Part

SD-156 copy

SD-156

W × H0.475 × 0.602 in MaterialTPE
Edge Trims
Request a quote for SD-156 → Spec sheet (PDF) Print spec sheet

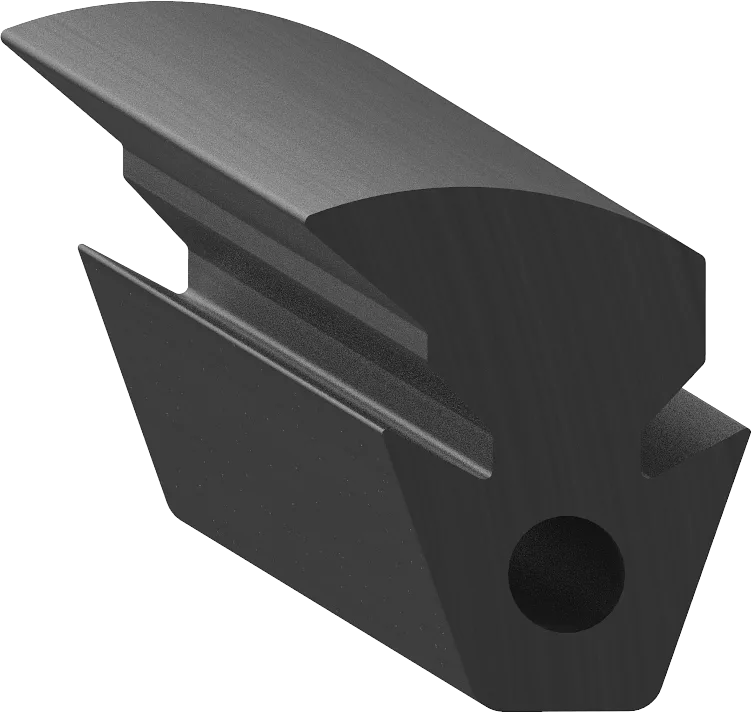

Cross-section drawing of SD-156
Cross-section — SD-156Not to scale
Specification

As drawn.

Specification for SD-156
Width 0.475" 12.1 mm
Height 0.602" 15.3 mm
Material TPE
Durometer 70 Shore A
Colour Black

Dimensions in inches to three places, as on the drawing; millimetres computed.
