SD-152 copy

SD-152

W × H0.260 × 0.420 in MaterialRubber

Edge Trims

Request a quote for SD-152 → Spec sheet (PDF) Print spec sheet

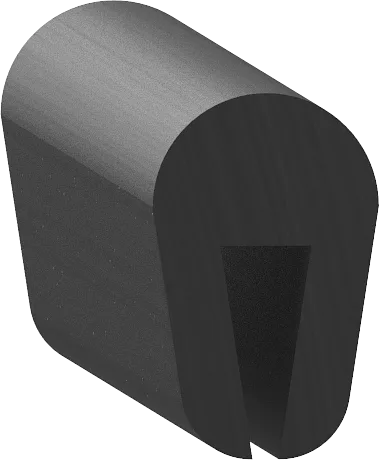

Cross-section drawing of SD-152 — Cross-section — SD-152Not to scale

Specification

As drawn.

Specification for SD-152
Width	0.260" 6.6 mm
Height	0.420" 10.7 mm
Flange	0.105" 2.7 mm
Material	Rubber
Type	Dense
Durometer	70 Shore A
Colour	Black
Mount	Push On

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

BD-149 0.330 × 0.570 in · Rubber ET-031 0.236 × 0.236 in · Rubber SD-138 0.400 × 0.490 in · Rubber
