Seal catalogue · Edge Trims · Part

SD-1400-AL copy

SD-1400 AL

W × H0.340 × 0.750 in MaterialPVC

Edge Trims

Request a quote for SD-1400-AL → Spec sheet (PDF) Print spec sheet

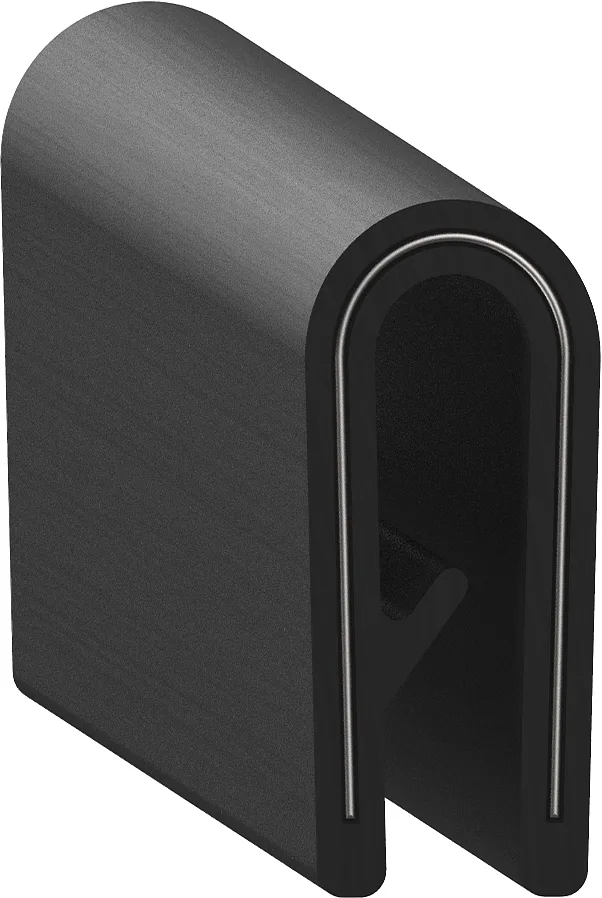

Cross-section drawing of SD-1400-AL — Cross-section — SD-1400-ALNot to scale

Specification

As drawn.

Specification for SD-1400-AL
Width	0.340" 8.6 mm
Height	0.750" 19.0 mm
Flange	0.180" 4.6 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Mount	Push On
Core	1.413in Stamped Aluminum

Dimensions in inches to three places, as on the drawing; millimetres computed.
