Seal catalogue · Edge Trims · Part

SD-139 copy

SD-139

W × H0.450 × 0.500 in MaterialRubber

Edge Trims

Request a quote for SD-139 → Spec sheet (PDF) Print spec sheet

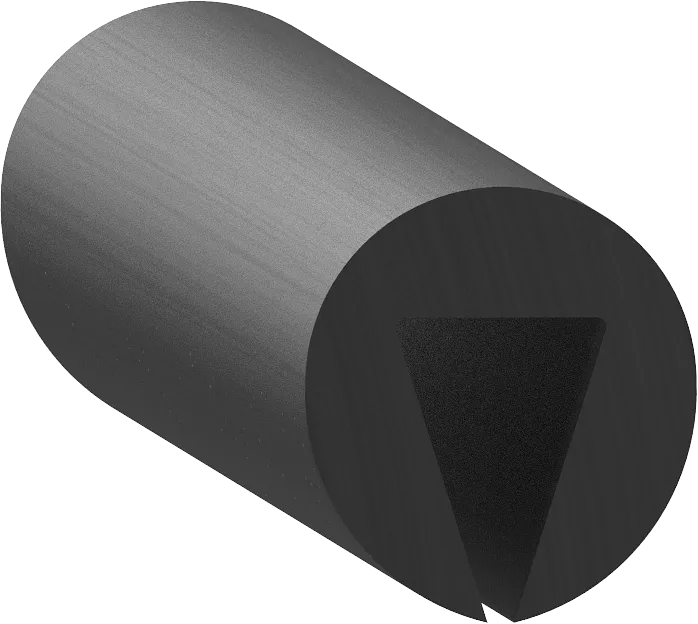

Cross-section drawing of SD-139 — Cross-section — SD-139Not to scale

Specification

As drawn.

Specification for SD-139
Width	0.450" 11.4 mm
Height	0.500" 12.7 mm
Flange	0.242" 6.1 mm
Material	Rubber
Type	Dense
Durometer	70 Shore A
Colour	Black
Mount	Push On

Dimensions in inches to three places, as on the drawing; millimetres computed.
