SD-132

W × H0.375 × 0.375 in MaterialRubber

Bulb Seals

Request a quote for SD-132 → Spec sheet (PDF) Print spec sheet

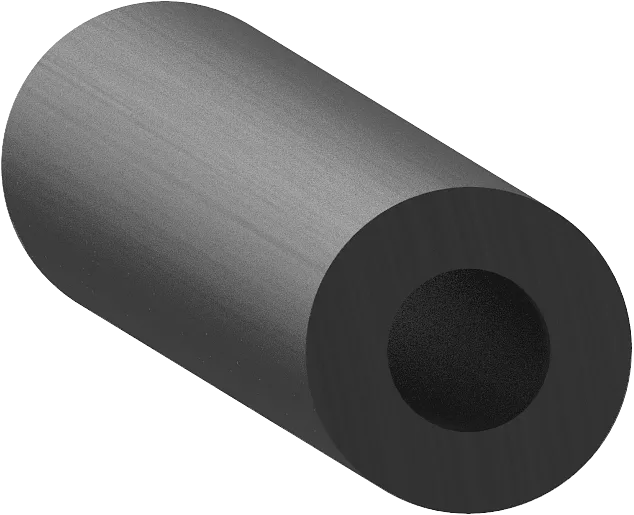

Cross-section drawing of SD-132 — Cross-section — SD-132Not to scale

Specification

As drawn.

Specification for SD-132
Width	0.375" 9.5 mm
Height	0.375" 9.5 mm
Material	Rubber
Type	Dense
Durometer	70 Shore A
Colour	Black
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

4 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

110-Bulb 0.500 × 0.500 in · Rubber 25-Bulb 0.250 × 0.250 in · Rubber 375-Bulb 0.375 × 0.375 in · Rubber 437-Bulb 0.437 × 0.437 in · Rubber
