Seal catalogue · Bulb Seals · Part

SD-12686-Rev copy

SD-12686 Rev.

W × H1.253 × 0.617 in MaterialRubber
Bulb Seals
Request a quote for SD-12686-Rev → Spec sheet (PDF) Print spec sheet

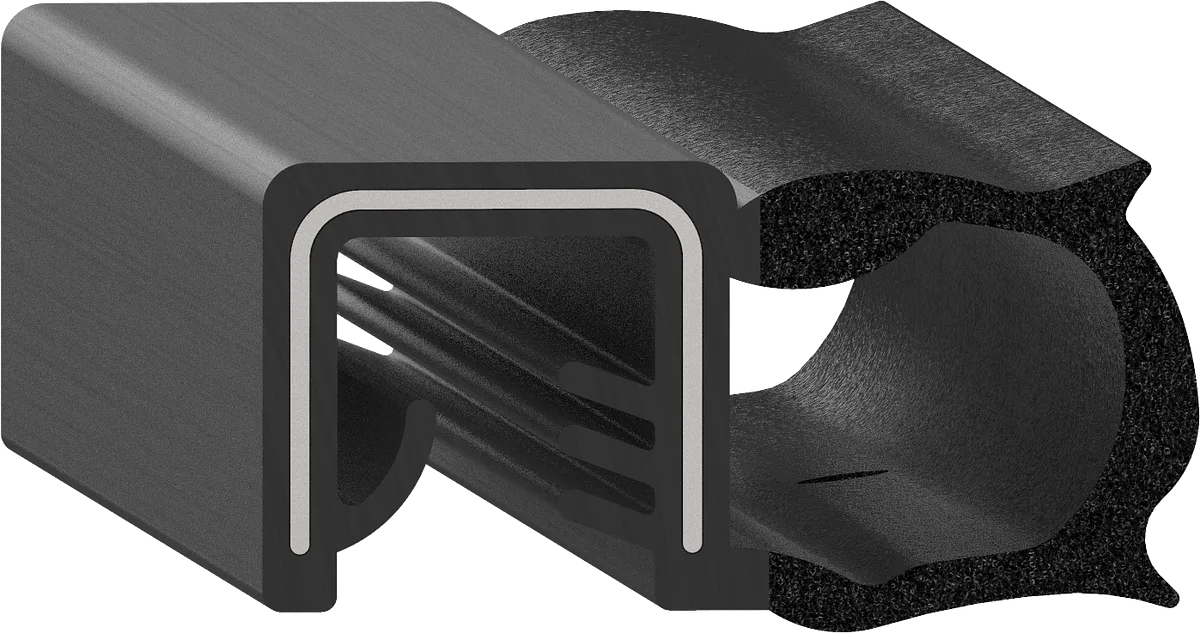

Cross-section drawing of SD-12686-Rev
Cross-section — SD-12686-RevNot to scale
Specification

As drawn.

Specification for SD-12686-Rev
Width 1.253" 31.8 mm
Height 0.617" 15.7 mm
Flange 0.425" 10.8 mm
Material Rubber
Type Sponge
Durometer 2A4 (sponge grade)
Colour Black
Mount Push On
Bulb position Side
Core 1.43in Wire
Second durometer70 Durometer
ShapeBulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.
