Seal catalogue
· Push On Rubber Seals
· Part
SD-12670 copy
SD-12670
W × H2.200 × 0.700 in
MaterialRubber
Specification

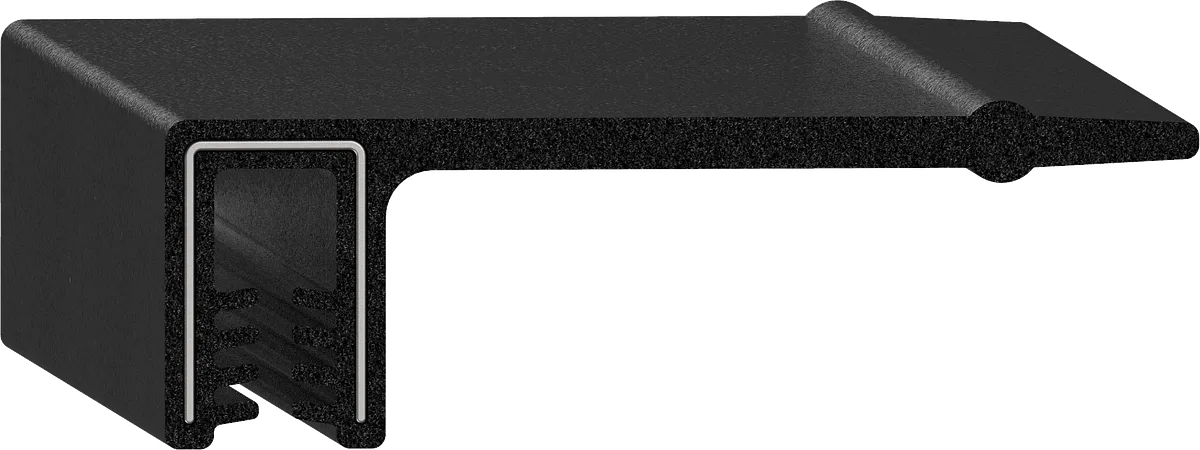

As drawn.
| Width | 2.200" 55.9 mm |
|---|---|
| Height | 0.700" 17.8 mm |
| Flange | 0.260" 6.6 mm |
| Material | Rubber |
| Type | Sponge |
| Durometer | 2A3 (sponge grade) |
| Colour | Black |
| Mount | Push On |
| Core | 1.43in Wire |
| Second durometer | 70 Durometer |
| Shape | Flap Seal |
| Flap | 1.730" 43.9 mm |
Dimensions in inches to three places, as on the drawing; millimetres computed.
1 interchangeable part
Substitutes from the catalogue.
Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.
Need it in volume, or to a change?
