Seal catalogue · Dual Durometer Rubber Seals · Part

SD-12648 copy

SD-12648

W × H0.475 × 1.900 in MaterialRubber

Request a quote for SD-12648 → Spec sheet (PDF) Print spec sheet

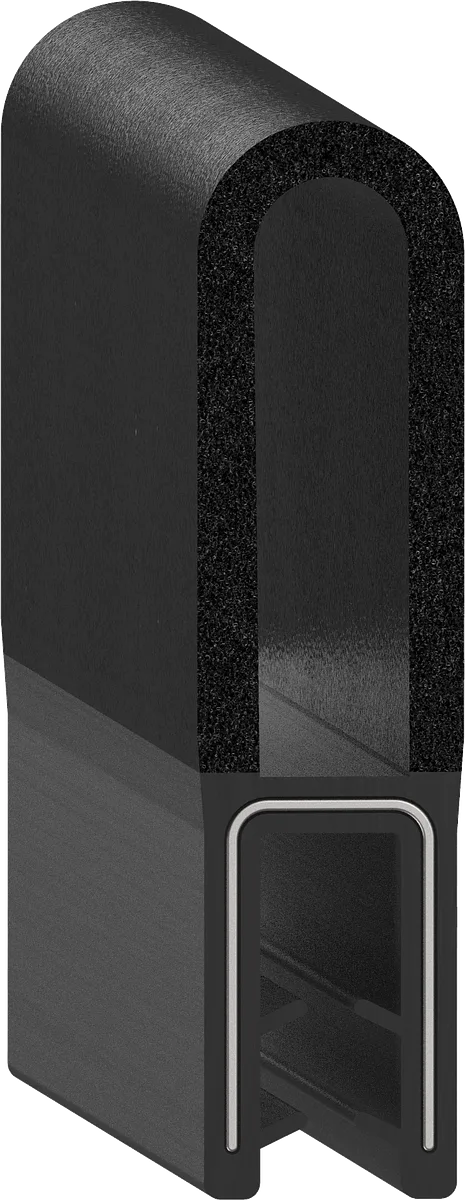

Cross-section drawing of SD-12648 — Cross-section — SD-12648Not to scale

Specification

As drawn.

Specification for SD-12648
Width	0.475" 12.1 mm
Height	1.900" 48.3 mm
Flange	0.250" 6.4 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Top
Core	1.43in Wire
Second durometer	70 Durometer

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-12178 0.440 × 1.165 in · Rubber SD-12180 0.744 × 2.320 in · Rubber
