Seal catalogue · Push On Rubber Seals · Part

SD-12643 copy

SD-12643

W × H1.450 × 1.576 in MaterialRubber
Push On Rubber Seals Bulb Seals
Request a quote for SD-12643 → Spec sheet (PDF) Print spec sheet

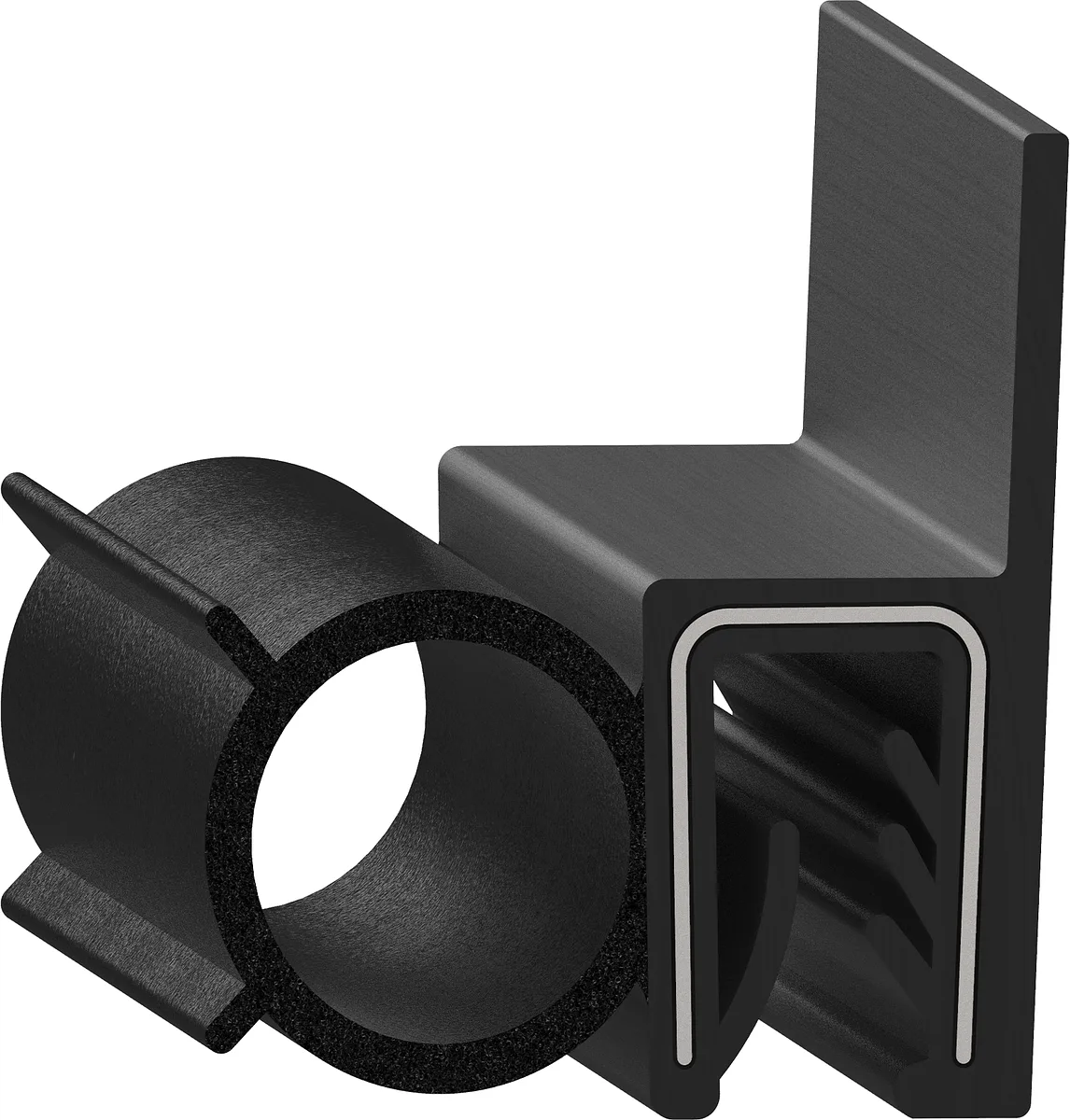

Cross-section drawing of SD-12643
Cross-section — SD-12643Not to scale
Specification

As drawn.

Specification for SD-12643
Width 1.450" 36.8 mm
Height 1.576" 40.0 mm
Flange 0.394" 10.0 mm
Material Rubber
Type Sponge
Durometer 2A4 (sponge grade)
Colour Black
Mount Push On
Bulb position Side
Core 1.7in Wire
Second durometer70 Durometer
ShapeBulb Seal and Flap Seal
Flap0.710" 18.0 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.
