Seal catalogue · Push On Rubber Seals · Part

SD-12632 copy

SD-12632

W × H1.500 × 1.420 in MaterialRubber
Push On Rubber Seals Bulb Seals
Request a quote for SD-12632 → Spec sheet (PDF) Print spec sheet

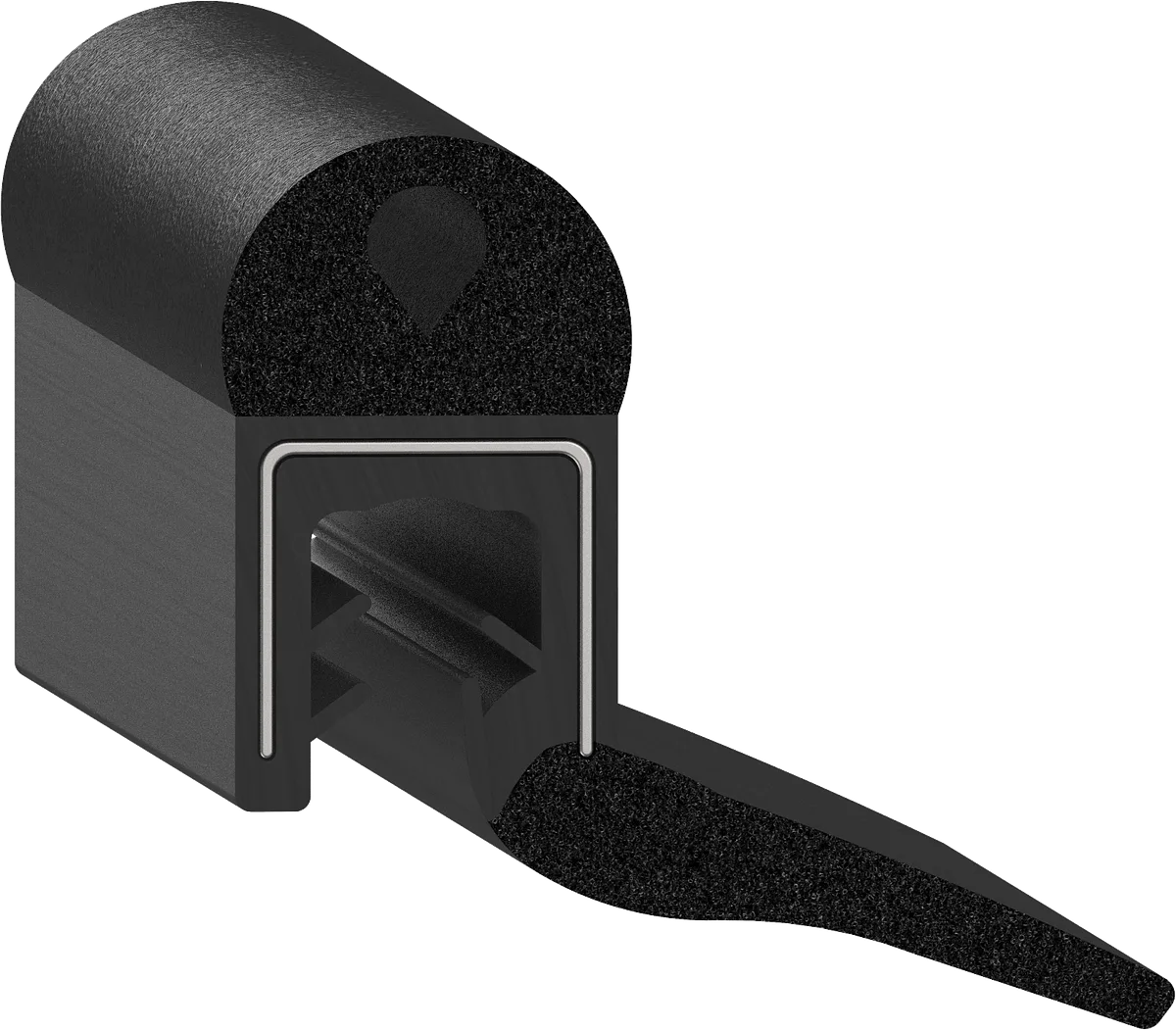

Cross-section drawing of SD-12632
Cross-section — SD-12632Not to scale
Specification

As drawn.

Specification for SD-12632
Width 1.500" 38.1 mm
Height 1.420" 36.1 mm
Flange 0.250" 6.4 mm
Material Rubber
Type Sponge
Durometer 2A3 (sponge grade)
Colour Black
Bulb position Top
Core 1.43in Wire
Second durometer70 Durometer
ShapeFlap Seal and Bulb Seal
Flap0.960" 24.4 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.
