Specification

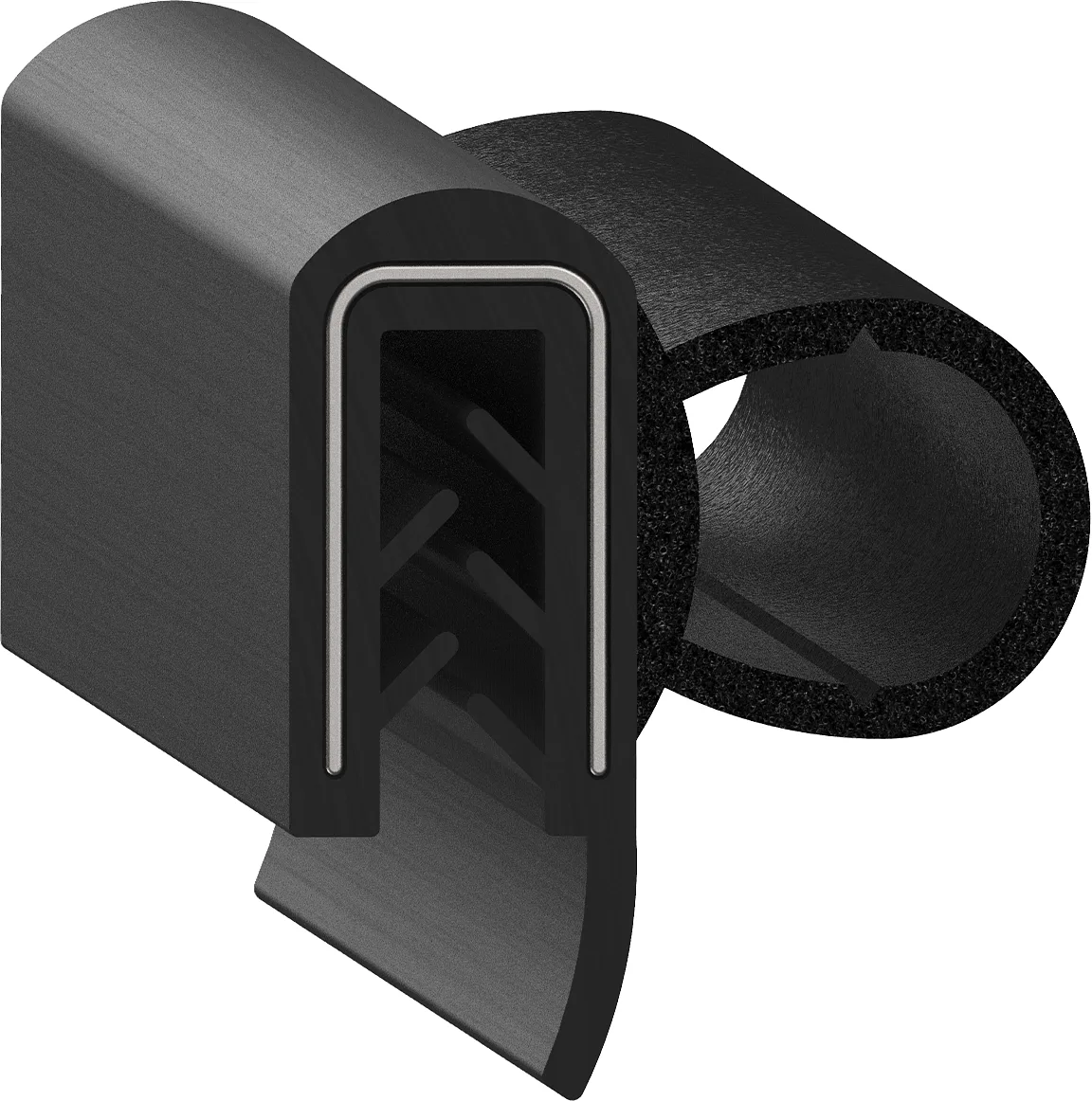

As drawn.
| Width | 0.971" 24.7 mm |
|---|---|
| Height | 1.035" 26.3 mm |
| Flange | 0.200" 5.1 mm |
| Material | Rubber |
| Type | Sponge |
| Durometer | 2A4 (sponge grade) |
| Colour | Black |
| Mount | Push On |
| Bulb position | Side |
| Core | 1.43in Wire |
| Second durometer | 70 Durometer |
| Shape | Bulb Seal |
| Flap | 0.300" 7.6 mm |
Dimensions in inches to three places, as on the drawing; millimetres computed.
