Specification

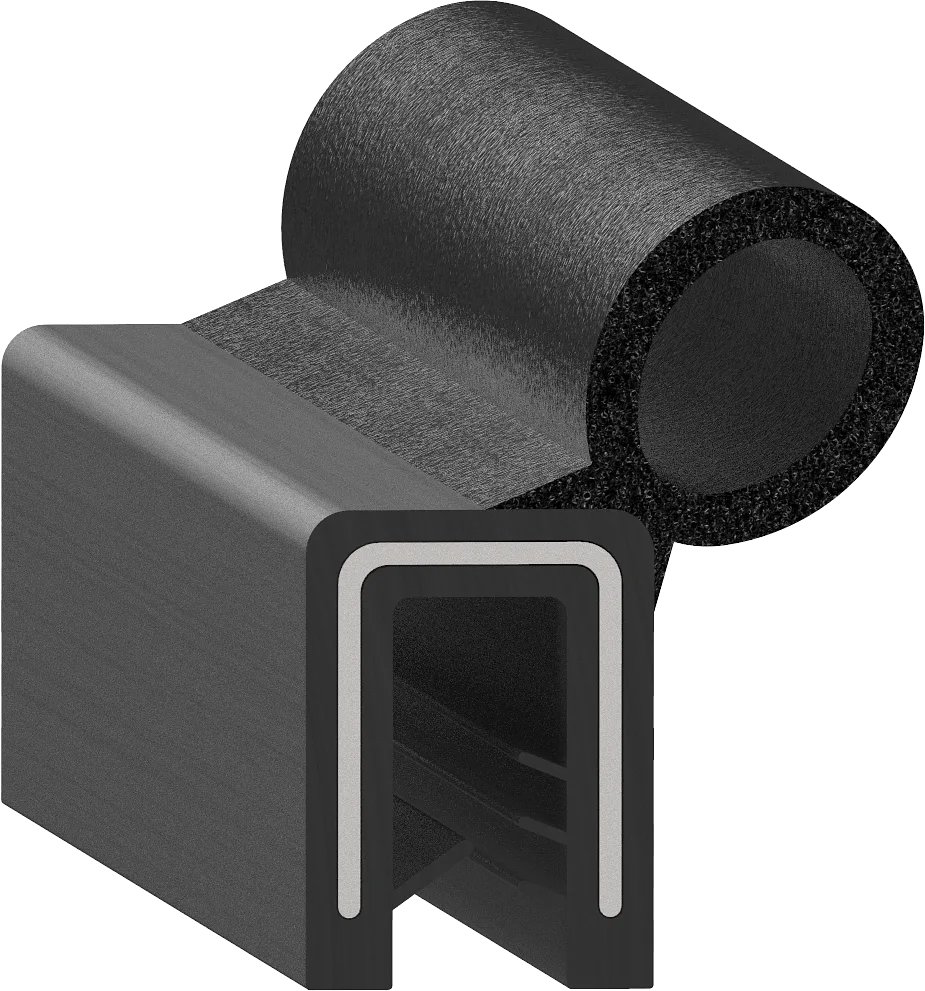

As drawn.
| Width | 0.740" 18.8 mm |
|---|---|
| Height | 0.900" 22.9 mm |
| Flange | 0.200" 5.1 mm |
| Material | Rubber |
| Type | Sponge |
| Durometer | 2A2 (sponge grade) |
| Colour | Black |
| Mount | Push On |
| Bulb position | Top |
| Core | 1in Wire |
| Industries | Emergency Vehicles |
| Second durometer | 70 Durometer |
| Shape | Bulb Seal |
Dimensions in inches to three places, as on the drawing; millimetres computed.
1 interchangeable part
Substitutes from the catalogue.
Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.
