SD-12109-NS-NC

W × H1.125 × 0.979 in MaterialRubber

Bulb Seals

Request a quote for SD-12109-NS-NC → Spec sheet (PDF) Print spec sheet

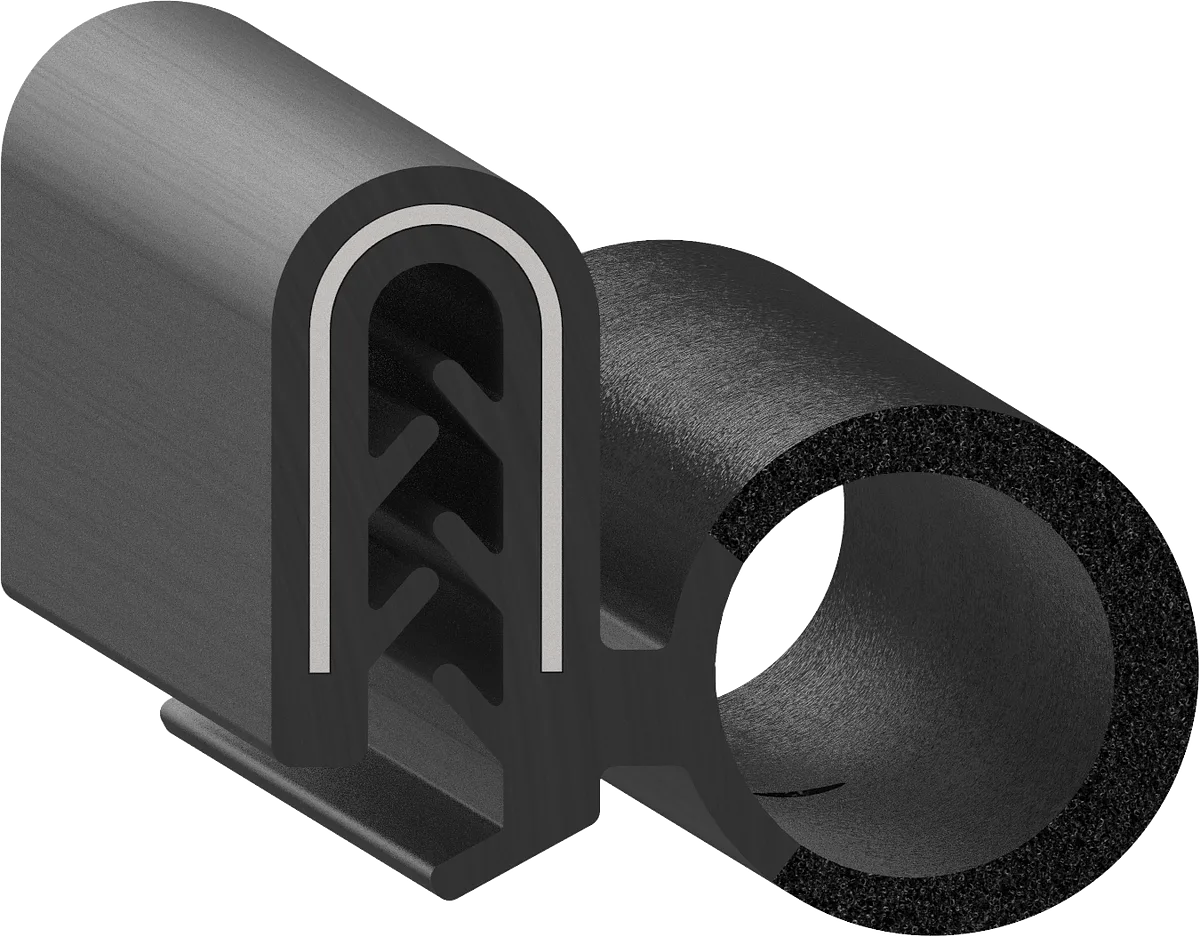

Cross-section drawing of SD-12109-NS-NC — Cross-section — SD-12109-NS-NCNot to scale

Specification

As drawn.

Specification for SD-12109-NS-NC
Width	1.125" 28.6 mm
Height	0.979" 24.9 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A2 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Side
Core	1.43in Wire
Second durometer	70 Durometer
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-12109-NS 1.250 × 0.979 in · Rubber SD-12109-NS-NC-Braun 1.125 × 0.750 in · Rubber
