SD-119-N

W × H1.350 × 0.740 in MaterialNitrile

Special Compounds Bulb Seals

Request a quote for SD-119-N → Spec sheet (PDF) Print spec sheet

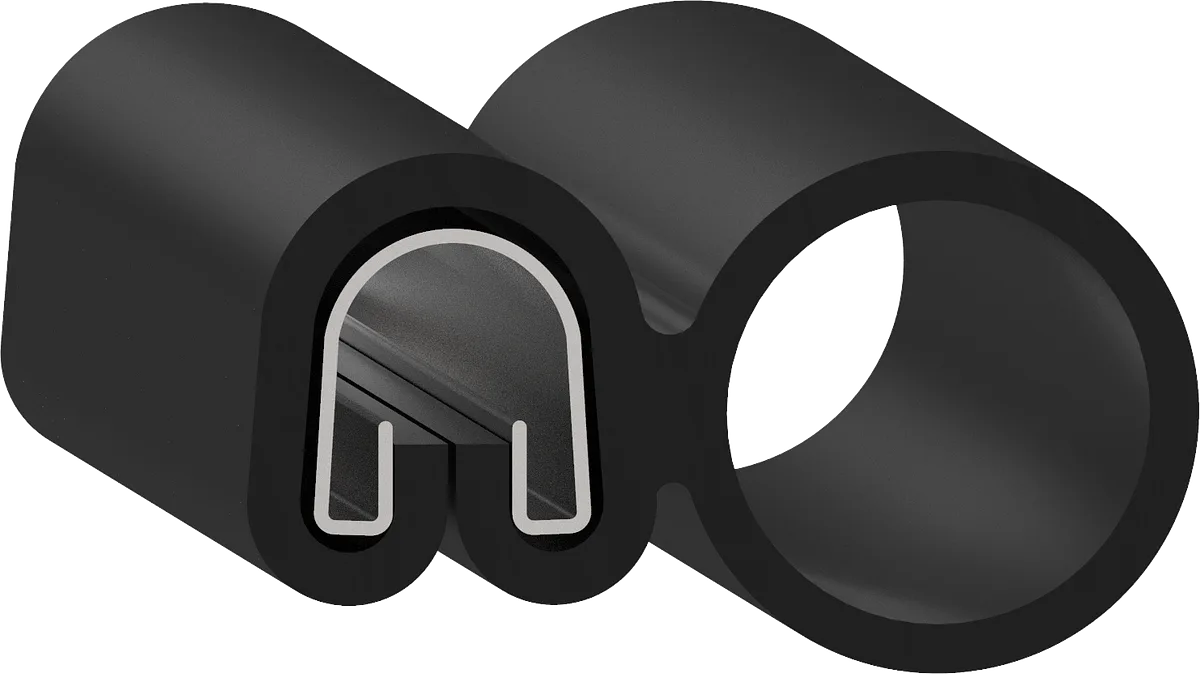

Cross-section drawing of SD-119-N — Cross-section — SD-119-NNot to scale

Specification

As drawn.

Specification for SD-119-N
Width	1.350" 34.3 mm
Height	0.740" 18.8 mm
Flange	0.125" 3.2 mm
Material	Nitrile
Durometer	70 Shore A
Colour	Black
Mount	Push On
Bulb position	Side
Core	SD-487 Spring Steel
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

1 interchangeable part

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-119 0.920 × 0.700 in · Rubber
