Seal catalogue · Tape Seals · Part

SD-117-T copy

SD-117-T

W × H0.725 × 0.875 in MaterialRubber

Tape Seals

Request a quote for SD-117-T → Spec sheet (PDF) Print spec sheet

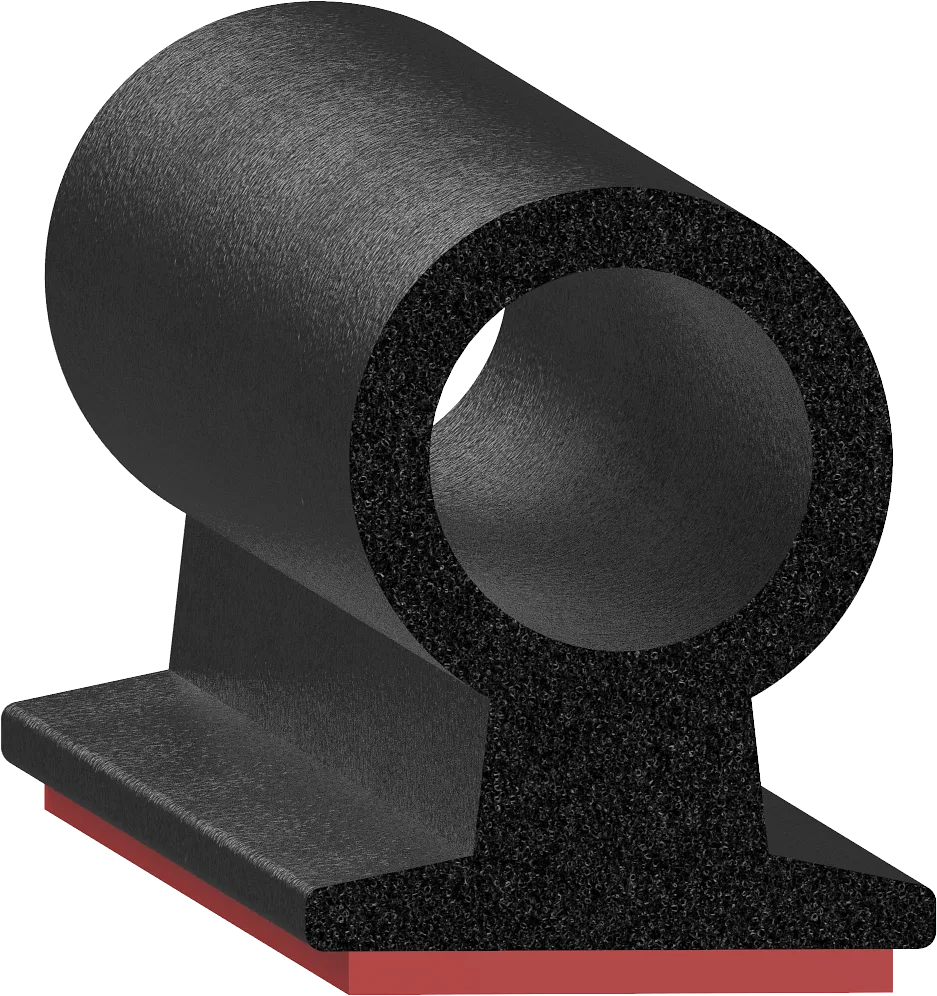

Cross-section drawing of SD-117-T — Cross-section — SD-117-TNot to scale

Specification

As drawn.

Specification for SD-117-T
Width	0.725" 18.4 mm
Height	0.875" 22.2 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Tape
Tape	3M Heat-Activated Tape

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-116-T 0.625 × 0.675 in · Rubber TS-099 0.669 × 0.941 in · Rubber
