Seal catalogue · Bulb Seals · Part

SD-109-W-500L copy

SD-109 W 500L

W × H1.300 × 0.996 in MaterialRubber
Bulb Seals
Request a quote for SD-109-W-500L → Spec sheet (PDF) Print spec sheet

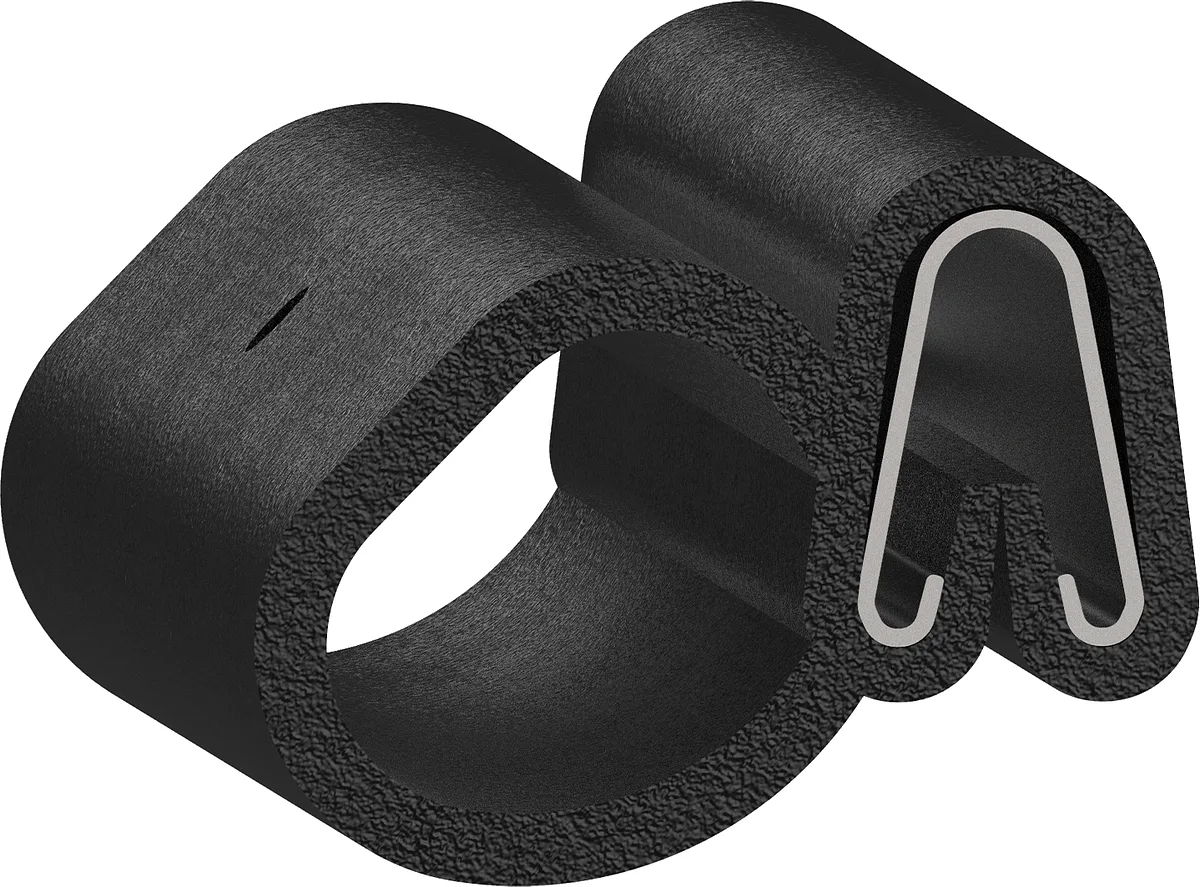

Cross-section drawing of SD-109-W-500L
Cross-section — SD-109-W-500LNot to scale
Specification

As drawn.

Specification for SD-109-W-500L
Width 1.300" 33.0 mm
Height 0.996" 25.3 mm
Flange 0.250" 6.4 mm
Material Rubber
Type Sponge
Durometer 2A4 (sponge grade)
Colour Black
Mount Push On
Bulb position Side
ShapeBulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.
